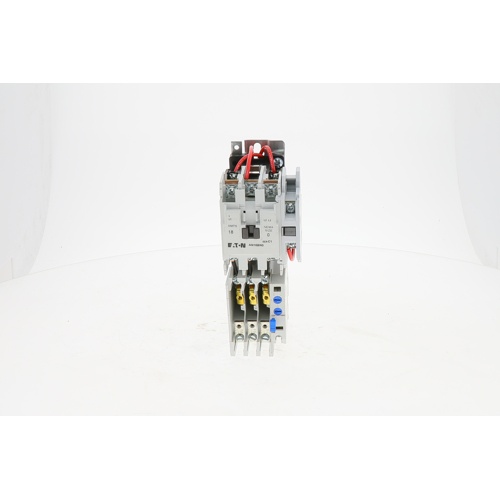

Cutler Hammer-Eaton AN16BN0CC NEMA Size 0 Non-Reversing Motor Starter

Description

The Cutler Hammer-Eaton AN16BN0CC is a NEMA Size 0 non-reversing motor starter engineered for reliable single- or three-phase motor control in commercial and industrial HVAC applications. Featuring a 440/480VAC, 50/60 Hz coil and a 3-pole configuration rated at 18 continuous amps, this starter delivers dependable performance across a wide range of motor loads.

Key Features

• NEMA Size 0 motor starter for single or three-phase non-reversing applications
• 440/480VAC, 50/60 Hz coil for compatibility with standard commercial power supplies
• 3-pole design rated at 18 continuous amps
• Open type enclosure for flexible panel or enclosure mounting
• Ambient compensated bimetallic overload relay for accurate motor protection across varying temperatures
• Includes one normally open (NO) auxiliary contact for control circuit integration

Motor Protection

The integrated ambient compensated bimetallic overload relay automatically adjusts trip thresholds based on surrounding temperature, ensuring consistent and reliable motor protection without nuisance tripping in fluctuating ambient conditions — ideal for mechanical rooms, rooftop units, and other variable-environment HVAC installations.

Application

Designed for use with compressors, fans, pumps, blowers, and other HVAC motor loads requiring dependable across-the-line starting. The open type enclosure allows integration into custom electrical panels or existing control cabinets.

Specifications

• Brand: Cutler Hammer-Eaton
• Model / SKU: AN16BN0CC
• NEMA Size: 0
• Coil Voltage: 440/480VAC, 50/60 Hz
• Poles: 3
• Continuous Amp Rating: 18A
• Enclosure Type: Open
• Phase: Single or Three Phase
• Operation: Non-Reversing
• Overload Relay: Ambient Compensated Bimetallic
• Auxiliary Contact: One Normally Open (NO)
