Description

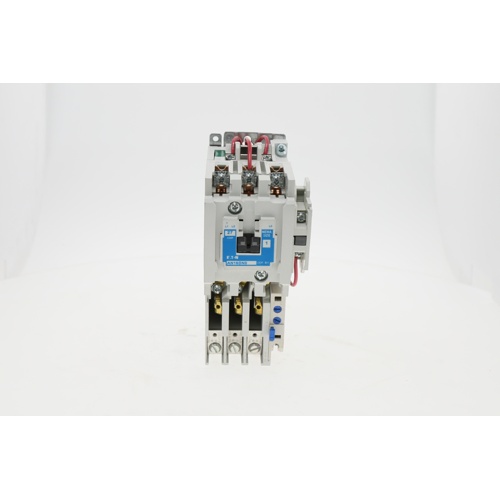

The Cutler Hammer-Eaton AN16DN0BB is a heavy-duty NEMA Size 1 non-reversing motor starter engineered for reliable single- or three-phase motor control in commercial and industrial HVAC applications. Featuring a 220/240VAC 50/60Hz coil and a 3-pole configuration rated at 27 continuous amps, this starter delivers dependable performance across a wide range of motor loads.
The unit is housed in an open-type enclosure, making it ideal for installation inside control panels, electrical enclosures, or mechanical rooms where additional protection is provided by the surrounding environment. An ambient-compensated bimetallic overload relay is included, providing accurate and consistent motor overload protection across varying ambient temperatures — a critical feature in mechanical rooms subject to heat fluctuations.
Key Features
- NEMA Size 1 motor starter for single or three-phase applications
- 220/240VAC coil voltage, compatible with 50Hz and 60Hz systems
- 3-pole design rated at 27 continuous amps
- Non-reversing configuration for standard motor control
- Open-type enclosure for panel or cabinet mounting
- Ambient-compensated bimetallic overload relay for accurate thermal protection
- Includes one normally open (NO) auxiliary contact
Specifications
- Brand: Cutler Hammer-Eaton
- SKU: AN16DN0BB
- NEMA Size: 1
- Poles: 3
- Continuous Amp Rating: 27A
- Coil Voltage: 220/240VAC
- Frequency: 50/60Hz
- Enclosure Type: Open
- Phase: Single or Three Phase
- Operation: Non-Reversing
- Overload Type: Ambient Compensated Bimetallic
Applications
- HVAC fan and blower motor control
- Pump motor starters in hydronic and chilled water systems
- Compressor motor control in commercial refrigeration and HVAC
- General-purpose industrial motor control panels
