Description

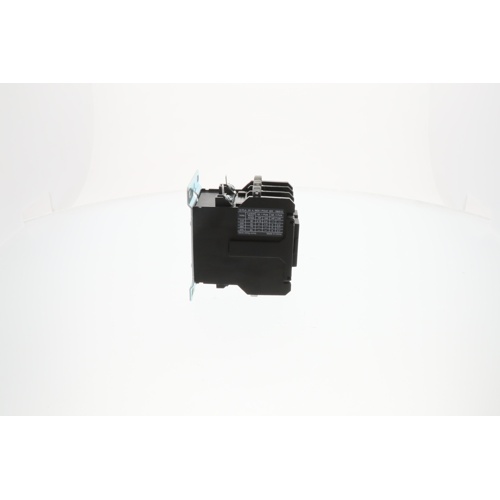

The Cutler Hammer-Eaton C25DND315T is a heavy-duty non-reversing definite purpose contactor engineered for dependable load switching in HVAC, refrigeration, and light commercial electrical applications. Featuring a 24VAC 50/60Hz coil voltage, this contactor is ideally suited for use with standard low-voltage HVAC control circuits, making it a natural fit for air conditioning systems, heat pumps, compressors, and fan motor loads.
Key Features
- Non-reversing definite purpose contactor design for reliable single-direction load control
- 3-pole configuration for three-phase or multi-leg single-phase load switching
- 15-amp load rating suitable for compressors, fan motors, and heating elements
- 24VAC coil voltage, 50/60Hz — compatible with standard HVAC control transformer outputs
- Open type enclosure for easy installation in electrical panels and equipment cabinets
- Includes metal mounting plate for secure, vibration-resistant installation
- Compact, space-saving footprint ideal for tight equipment enclosures
Specifications
- SKU: C25DND315T
- Brand: Cutler Hammer-Eaton
- Coil Voltage: 24VAC, 50/60Hz
- Poles: 3
- Amperage: 15 Amps
- Enclosure Type: Open
- Operation: Non-Reversing
- Contactor Type: Definite Purpose
- Mounting: Metal Mounting Plate Included
Application
Definite purpose contactors like the C25DND315T are the industry standard for HVAC and refrigeration equipment switching. The 24VAC coil integrates seamlessly with thermostat and control board outputs, while the robust 3-pole, 15-amp design handles the inrush and continuous current demands of compressor and motor loads. The open-type enclosure and included metal mounting plate simplify installation in air handlers, rooftop units, condensing units, and packaged equipment.
