Description

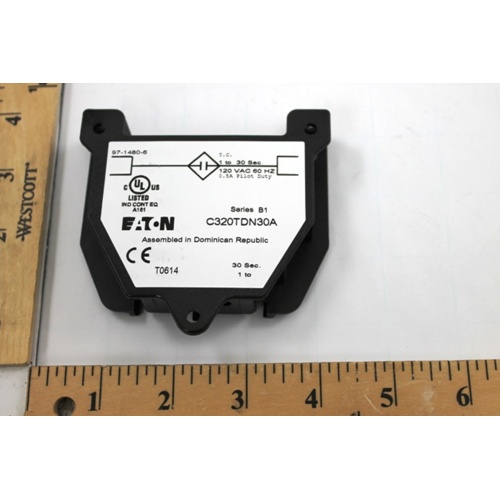

The Cutler Hammer-Eaton C320TDN30A is a solid-state ON delay timer engineered for precise, reliable timing control in electrical and HVAC applications. Designed for side-mounted installation, this timer integrates seamlessly into motor starters and control panels, providing dependable sequencing and delay functions that protect equipment and optimize system performance.
Key Features
- Solid-state ON delay timing function for accurate, repeatable performance
- 120V AC operating voltage for compatibility with standard commercial and industrial control circuits
- 1–30 second adjustable timing range for flexible application setup
- Side-mounted design for easy integration with compatible motor starters and control assemblies
- Solid-state electronics deliver long service life with no mechanical wear
- Compact form factor minimizes panel space requirements
Specifications
- SKU: C320TDN30A
- Brand: Cutler Hammer-Eaton
- Operating Voltage: 120V
- Timing Function: Solid-State ON Delay
- Timing Range: 1–30 Seconds
- Mounting Style: Side Mounted
Application
The C320TDN30A is ideal for use in motor control centers, HVAC control panels, and industrial automation systems where a reliable ON delay function is required. The adjustable 1–30 second timing range allows technicians to fine-tune sequencing for compressor start delays, fan staging, pump control, and other time-sensitive HVAC and electrical operations.
