Description

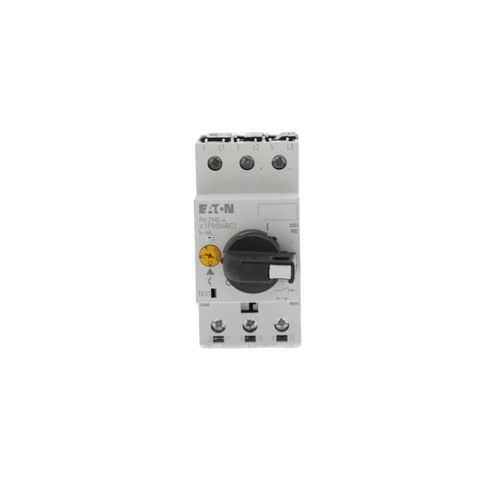

The Cutler Hammer-Eaton XTPR004BC1 is part of the XT Series of Manual Motor Protectors, engineered to provide dependable overload and short-circuit protection for three-phase and single-phase motor circuits in commercial and industrial HVAC applications. Designed as a combination motor starter and circuit breaker in a compact, DIN-rail-mountable package, this device simplifies panel design while delivering robust motor protection.
Product Overview
The XTPR004BC1 Manual Motor Protector from Eaton’s XT Series offers a space-saving solution for motor branch circuit protection. It replaces the need for separate fuses and overload relays, streamlining installation and reducing component count in electrical panels and motor control centers.
Key Features
- Manual motor protector with integrated overload and short-circuit protection
- Part of Eaton’s XT Series — designed for modular, DIN-rail panel assembly
- Compact design reduces panel space requirements
- Adjustable current setting dial for precise motor protection
- Suitable for three-phase and single-phase motor applications
- Compatible with XT Series contactors and accessories for full motor starter assemblies
- Provides both manual on/off switching and automatic trip on fault
- Lockable handle for safety lockout/tagout (LOTO) compliance
Typical Applications
- HVAC fan and blower motor protection
- Pump motor branch circuit protection
- Commercial and industrial motor control panels
- Motor control centers (MCCs)
- OEM equipment and machinery
Why Choose Eaton XT Series
Eaton’s XT Series is a globally recognized platform for motor control and protection. The modular design allows for easy expansion with auxiliary contacts, alarm contacts, and communication modules. Built to meet international standards, XT Series components are trusted by engineers and contractors for their reliability, ease of installation, and long service life in demanding environments.
Brand
Cutler Hammer-Eaton is a world leader in electrical components and power management solutions, delivering innovative products for HVAC, industrial, and commercial applications.
