Description
Overview

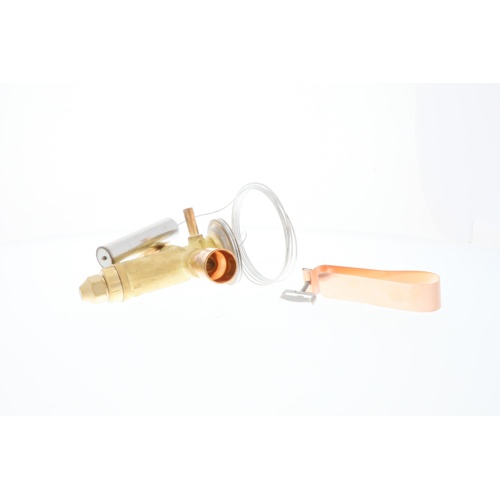

The Danfoss 067N6181 is a high-performance Thermal Expansion Valve (TXV) engineered for commercial and industrial refrigeration systems operating on R404A and R507 refrigerants. Designed as a Type TGES 20 straight-body valve, it delivers precise superheat control and reliable capacity regulation in demanding low-temperature applications.
Key Features
- Refrigerant compatibility: R404A and R507
- Nominal system capacity: 11 Ton
- Valve body style: Straight body
- Inlet connection: 7/8″ ODF (solder)
- Outlet connection: 1-1/8″ ODF (solder)
- Capillary tube length: 60 inches for flexible bulb placement
- Orifice size: Number 16
- Maximum Operating Pressure (MOP): 667 PSI — protects compressor against high suction pressure at startup
- Externally equalized for accurate superheat control in systems with significant evaporator pressure drop
- Includes bulb strap for secure thermal bulb mounting
- Valve type: TGES 20
Technical Specifications
- SKU / Part Number: 067N6181
- Brand: Danfoss
- Type: Thermostatic Expansion Valve (TXV / TEV)
- Refrigerants: R404A, R507
- Capacity: 11 Ton
- Inlet Size: 7/8″ ODF
- Outlet Size: 1-1/8″ ODF
- Body Style: Straight
- Capillary Tube: 60″ length
- Orifice: #16
- MOP: 667 PSI
- Equalization: External
- Includes: Bulb strap
Application
The Danfoss TGES 20 TXV is ideally suited for commercial refrigeration equipment such as walk-in coolers and freezers, display cases, and cold storage systems using R404A or R507 refrigerant. The externally equalized design ensures accurate superheat control even when evaporator pressure drop is significant, making it the preferred choice for longer or distributed evaporator circuits. The 667 PSI MOP rating provides reliable compressor protection during high-load or startup conditions.
