Description
The Danfoss 067N9403 is a heavy-duty, externally equalized Thermal Expansion Valve (TXV) engineered for reliable refrigerant flow control in commercial and light-industrial refrigeration and air conditioning systems. Designed for use with R22 and R407C refrigerants, this Type TGEX 10 valve delivers precise superheat control at capacities up to 6 tons, making it an ideal drop-in solution for demanding cooling applications.

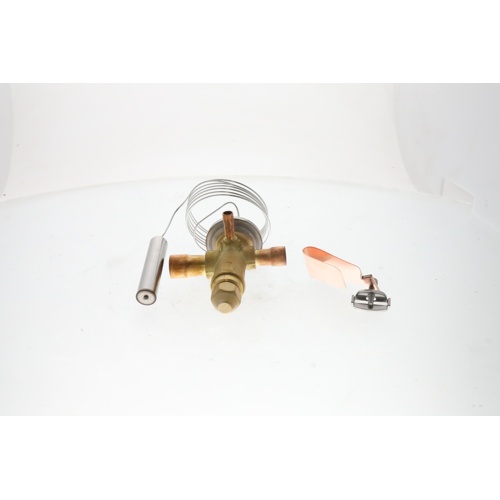

Featuring a straight-body configuration with 1/2″ ODF inlet and 5/8″ ODF outlet connections, the 067N9403 integrates seamlessly into standard copper line sets. The 60″ capillary tube provides flexible bulb placement during installation, while the included bulb strap ensures secure, consistent thermal sensing contact. The number 6 orifice is factory-installed and sized to match the rated system capacity.
External equalization allows the valve to compensate for pressure drop across the evaporator, maintaining accurate superheat control even in longer or more complex coil circuits. The high Maximum Operating Pressure (MOP) rating of 667 PSI provides a reliable safeguard against compressor floodback during startup and high-load conditions.
Key Features
- Type TGEX 10 externally equalized thermal expansion valve
- Compatible refrigerants: R22 and R407C
- System capacity: 6 Ton
- Connections: 1/2″ ODF inlet x 5/8″ ODF outlet, straight body
- Capillary tube length: 60″
- Orifice number: 6 (factory installed)
- Maximum Operating Pressure (MOP): 667 PSI
- External equalization for accurate superheat control across long evaporator circuits
- Includes bulb strap for secure thermal bulb mounting
Applications
- Commercial air conditioning systems
- Light-industrial refrigeration
- R22 retrofit and R407C replacement applications
- Systems with higher evaporator pressure drop requiring external equalization
Why Choose Danfoss TXVs?
Danfoss is a globally recognized leader in refrigeration and HVAC controls, known for precision-engineered expansion valves that optimize system efficiency and protect compressor longevity. The TGEX series is built to tight manufacturing tolerances, ensuring consistent superheat settings and long service life in the field.
