Description

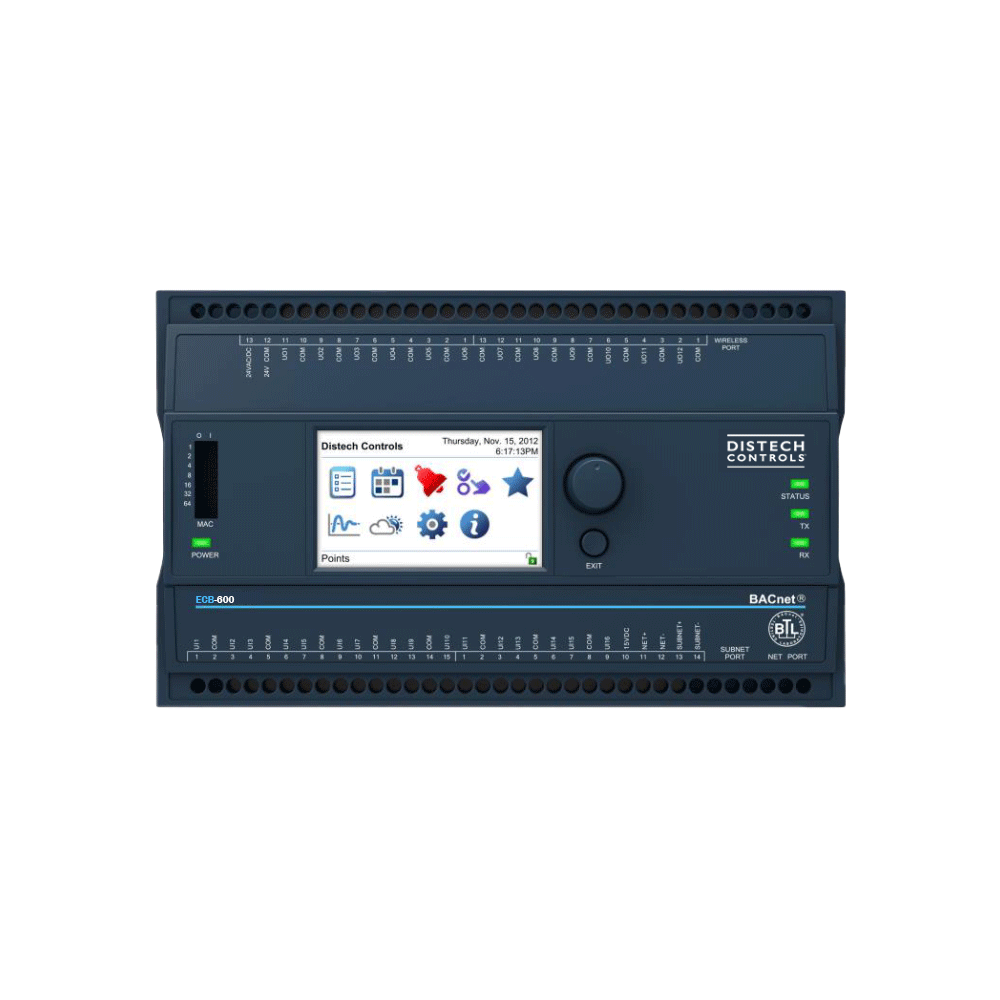

The Distech Control ECB-600 provides 28 Points, 15Vdc Power Supply, 16 UI, 12 UO.
The ECB-600 Series controllers are microprocessor-based programmable controllers designed to control various building automation applications such as air handling units, chillers, boilers, pumps, cooling towers, and central plant applications. This series supports up to two ECx-400 Series I/O extension modules.
This controller uses the BACnet MS/TP LAN communication protocol and is BTL®-Listed as BACnet Advanced Application Controllers (BAAC).
Features
- Flexible inputs and outputs support all industry-standard HVAC unitary applications
- Rugged hardware inputs and outputs eliminate the need for external protection equipment
- Models available with HOA switches and potentiometers are ideal for equipment testing or commissioning
- An optional full-color backlit display with jog dial provides direct access to a wide range of controller functions
- Supports EC-gfxProgram, making Building Automation System programming effortless
- Open-to-Wireless™ ready, supporting a wide variety of wireless sensors and switches and helping to reduce installation costs
- Supports the Allure™ Series Communicating Sensors, providing intelligent sensing and environmental zone control
