Description

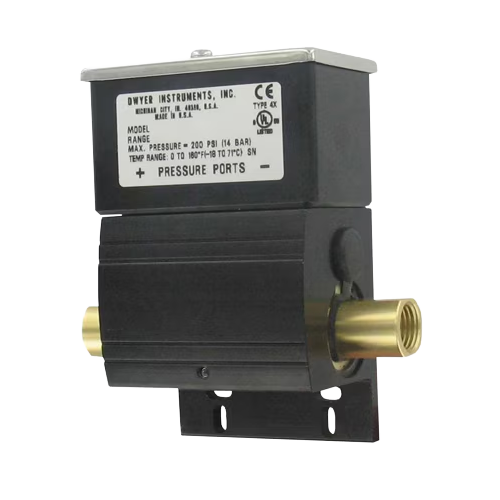

The Dwyer DXW 11 153 1 is a rugged wet/wet differential pressure switch designed to monitor pressure differences between two sources and provide a reliable electrical control output when a set differential pressure is reached. Ideal for industrial, HVAC, and process applications, this switch combines durable construction with field adjustable settings for flexible performance.
Key Features
- Differential Pressure Range 2.5 – 10 psi: Adjustable set point allows this switch to respond where moderate differential pressure changes are present.
- SPDT Snap Action Switch: Single pole, double throw output contacts (5 A @ up to 250 VAC or 30 VDC) provide dependable control or alarm signaling.
- Weatherproof NEMA 4X / IP65 Enclosure: Polycarbonate and aluminum housing protects internal components from dust, moisture, and harsh environments.
- Brass and Fluoroelastomer Wetted Materials: Compatible with most gases and water based fluids for versatile application use.
- 1/4″ Female NPT Ports: Standard pressure connections simplify integration with existing pneumatic lines.
- External Set Point Adjustment: Operator friendly screw adjustment lets you fine tune activation pressure without disassembly.
- Removable Terminal Block: Eases electrical wiring and service access.
