Description

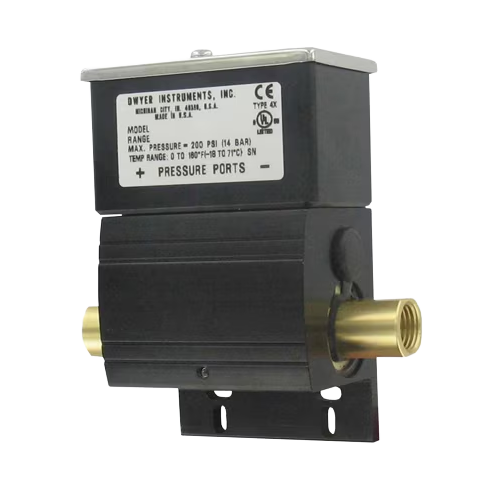

The Dwyer DXW 11 153 2 is a robust wet/wet differential pressure switch engineered for dependable pressure monitoring and control in HVAC, process, and industrial applications. Designed to activate a switch output based on the difference between two pressure sources, this DX Series switch delivers accurate performance with adjustable set points and durable construction.
Key Features
- Differential pressure range: Adjustable from 10 to 25 psi to suit a variety of monitoring and control needs.
- SPDT switch output: Provides a single pole double throw (SPDT) contact for reliable control signal feedback.
- Rugged weatherproof enclosure: NEMA 4X/IP65 housing protects the switch mechanism in outdoor, wash down, or dust laden environments.
- 1/4″ NPT female pressure ports: Standard threaded connections simplify integration with existing pressure lines and systems.
- Brass and fluoroelastomer wetted materials: Compatible with most gases and water based fluids for versatile use.
- Adjustable set point: External adjustment screw makes calibration straightforward without special tools.
- Removable terminal block: Facilitates fast installation and easier wiring.
