Description

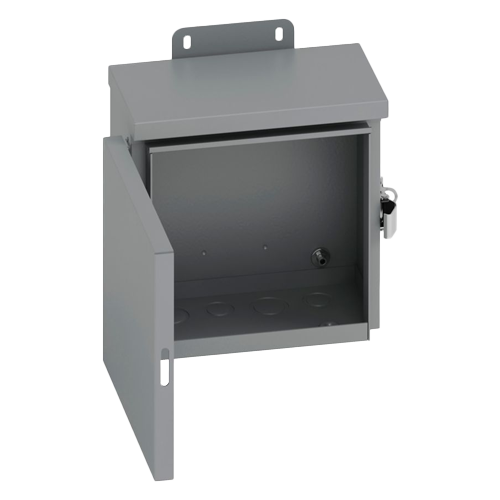

The 12126RHC is a NEMA 3R 12” x 12” x 6” enclosure with a hinged lockable cover. Knockouts are furnished on the bottom and the cover is secured to the body with a continuous hinge with stainless steel pin. The padlock draw pull catch provides for secure, tight closure. The sub-panel is mounted with #10-32 weldnuts. A ground stud is provide on the door.
Features:
- Enclosure Dimensions: 12”H x 12”W x 6”D
- Sub-Panel Dimensions: 10.25”H x 10.25”W
- Sub-Panel Type: Solid Painted Steel
- Enclosure Body: 16 gauge galvaneal steel
- Finish: ANSI-61 gray polyester powder paint, Wash and phosphate undercoat
- Knockouts: Bottom of enclosure
- Door Hinge: Continuous hinge / stainless steel pin
- Latch: Rugged padlock draw pull catch
- Panel mounts: External mounting feet
- Grounding Provisions: Ground studs provided on door and panel
