Description

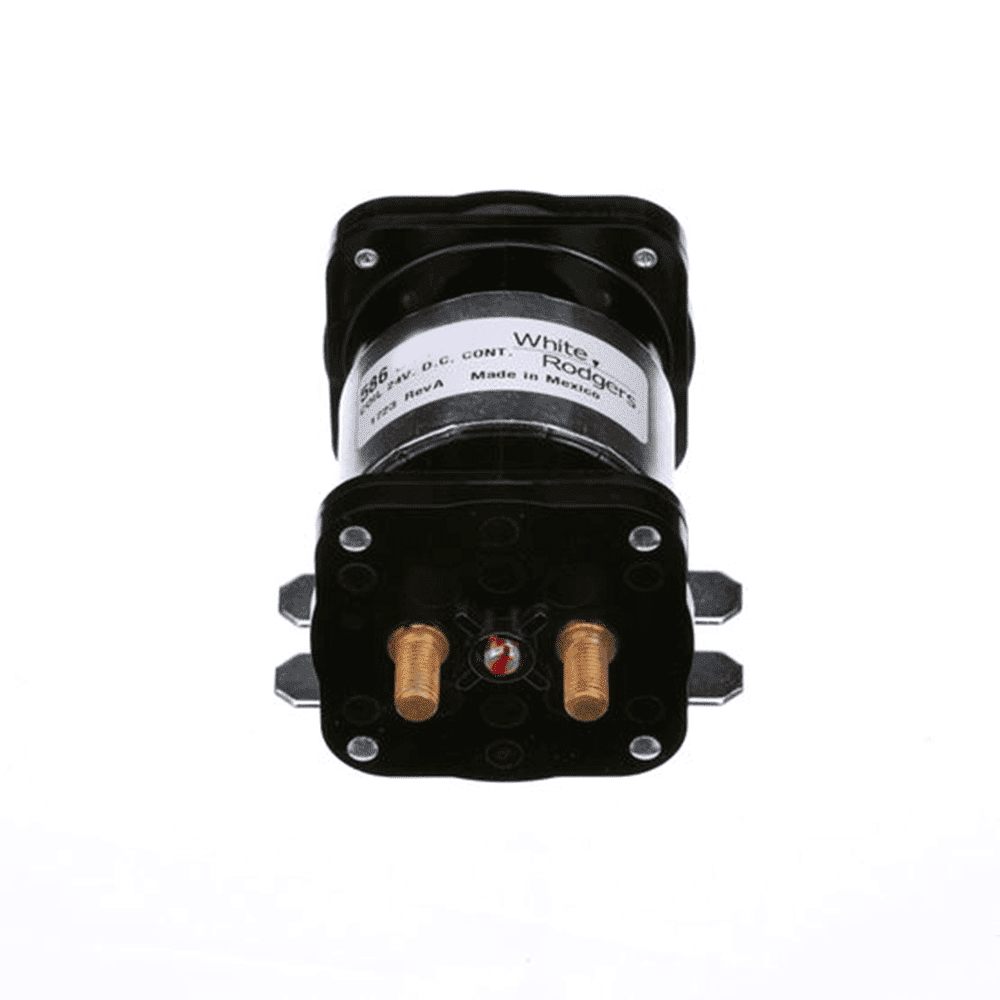

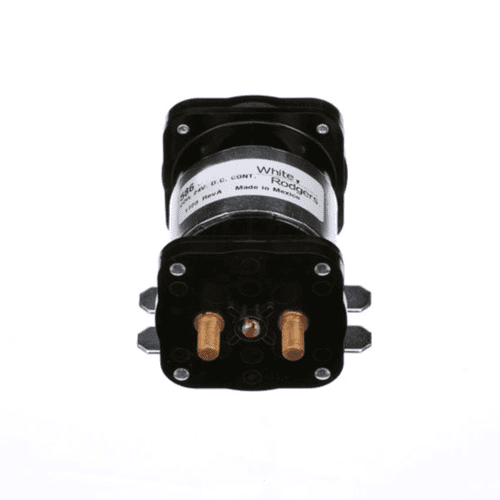

The Emerson 586-120111 is a 4 Terminal Single Pole Normally Open Contactor with water resistance.
Features
-
DC Power Solenoid Designed to be Utilized in Multiple Applications Versatile mounting and termination Water & Dust Resistant Case Design Case is Isolated from Bracket
Specifications
- Duty Cycle: Continuous
- Terminal Type: 4
- Connector Type: Isolated Coil, SPNO
- Coil Voltage: 48 D.C.
- Contacts: Silver Alloy
- Contact Rating: 36A
- Amperage: N.O. Contacts 200, Inrush 600
- Ambient Operating Temperature: -40° to +149°F
- Termination Style: Contacts 5/16”-24 UNF-2A thread, Coil #10-32 UNF-2A thread
- Mounting Options: Recommend Vertical plane with coil terminals up
