Description

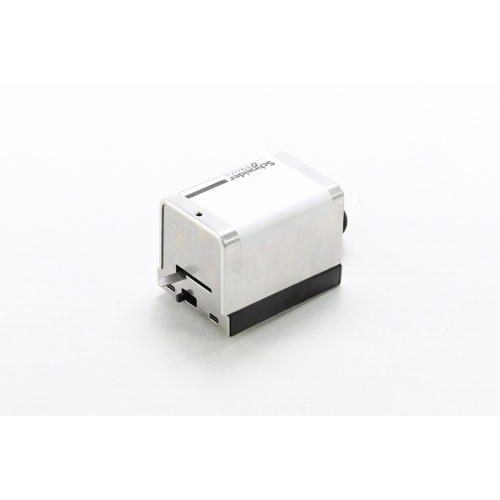

The Schneider Electric (Erie) AG13A020 is a dependable actuator motor engineered for precise two-position valve control in commercial and residential HVAC applications. Designed to operate on 24VAC power, this actuator delivers consistent, repeatable performance for hydronic heating, cooling, and zone control systems.
Key Features
- 24VAC operating voltage for compatibility with standard HVAC control systems
- Two-position (on/off) control for straightforward open/close valve actuation
- Spring return mechanism ensures the valve returns to the normally closed (NC) fail-safe position upon loss of power
- Normally closed (NC) default position provides built-in safety and system protection
- 18″ pre-attached wire leads for easy installation and wiring flexibility
- Compact, robust motor design built to withstand demanding HVAC environments
Application
The AG13A020 actuator motor is ideal for use with Erie zone valves in hydronic heating and cooling systems, fan coil units, and building automation applications. The spring return function ensures the valve closes automatically in the event of a power interruption, protecting system components and maintaining safe operating conditions.
Why Choose the Erie AG13A020
- Fail-safe spring return operation for added system reliability
- Drop-in replacement for compatible Erie valve actuators
- Pre-wired 18″ leads reduce installation time
- Trusted Schneider Electric (Erie) quality and engineering
- Suitable for two-position zone control in commercial and light commercial HVAC systems
