Description

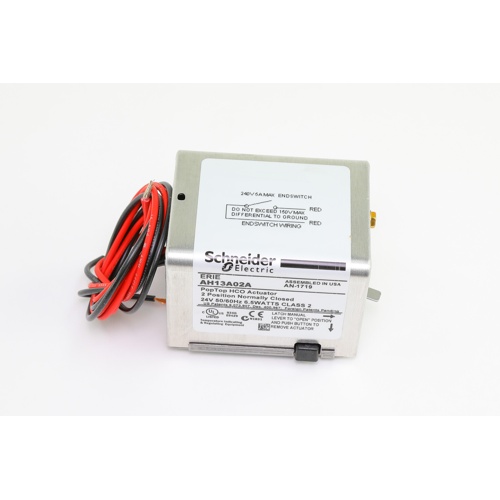

The Schneider Electric (Erie) AH13A02A is a reliable, commercial-grade valve actuator engineered for precise two-position control in hydronic heating, cooling, and HVAC systems. Designed to operate on 24Vac power, this actuator features a spring-return mechanism that automatically drives the valve to the normally closed (NC) fail-safe position upon loss of power — providing critical system protection and peace of mind in demanding applications.
Key Features
- 24Vac operating voltage for compatibility with standard HVAC control systems
- Two-position (open/close) control for straightforward on/off valve operation
- Spring-return mechanism ensures fail-safe normally closed position on power loss
- High close-off force rating for reliable sealing against system pressure
- Built-in end switch provides auxiliary feedback signal for system status monitoring or interlocking
- 18-inch wire leads for flexible installation and easy field wiring
Applications
- Fan coil units and air handling units
- Hydronic heating and chilled water systems
- Zone valve control in commercial and light commercial HVAC
- Building automation and energy management systems
Why Choose the Erie AH13A02A
The Erie line of actuators from Schneider Electric has a long-standing reputation for durability and dependability in commercial HVAC applications. The AH13A02A’s spring-return, normally closed design ensures that your system defaults to a safe state during any power interruption, while the integrated end switch allows for easy integration with building automation systems, enabling status confirmation and interlock wiring without additional components.
Specifications
- SKU: AH13A02A
- Brand: Schneider Electric (Erie)
- Supply Voltage: 24Vac
- Control Type: Two-Position
- Return Type: Spring Return
- Fail-Safe Position: Normally Closed
- Close-Off Rating: High Close Off
- Wire Leads: 18 inches
- Auxiliary Output: End Switch included
