Description

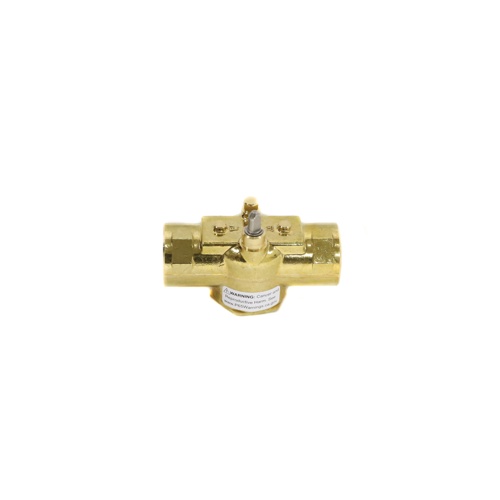

The Schneider Electric (Erie) VM2322 is a high-quality modulating zone valve body engineered for precise flow control in hydronic heating and cooling systems. Featuring a 3/4″ NPT two-way configuration with a 2.0 Cv flow coefficient, this valve body delivers reliable, proportional control of hot water, chilled water, and other compatible hydronic media.
Designed to pair with Erie modulating actuators, the VM2322 provides smooth, stepless flow regulation — making it ideal for variable air volume (VAV) systems, fan coil units, air handling units, and other commercial HVAC applications that demand accurate temperature and flow management.
Key Features
- 3/4″ NPT end connections for straightforward installation into standard piping
- Two-way valve body design for direct supply or return line flow control
- 2.0 Cv flow coefficient for optimized flow capacity and system balance
- Modulating operation enables precise, proportional control of fluid flow
- Compatible with Schneider Electric (Erie) modulating actuators
- Suitable for hot water heating and chilled water cooling hydronic systems
- Durable construction designed for long service life in commercial HVAC applications
Applications
- Fan coil units (FCUs)
- Air handling units (AHUs)
- Hydronic heating and cooling distribution systems
- Variable flow commercial HVAC systems
- Building automation and energy management systems
Product Specifications
- Brand: Schneider Electric (Erie)
- Model / SKU: VM2322
- Connection Size: 3/4″
- Connection Type: NPT (National Pipe Thread)
- Valve Configuration: Two-Way
- Flow Coefficient (Cv): 2.0
- Operation Type: Modulating
