Description

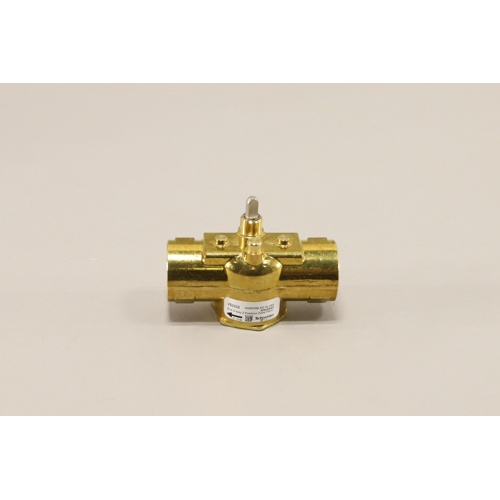

The Schneider Electric (Erie) VS2322 is a heavy-duty two-position zone valve body engineered for steam heating applications in commercial and residential hydronic systems. Designed to work seamlessly with compatible Erie actuators, this valve body provides precise on/off zone control, helping to optimize system efficiency and occupant comfort.
Key Features
- 3/4″ NPT pipe connection for straightforward installation into standard steam piping
- Two-way valve design directs steam flow through a single controlled path
- 2.5 Cv flow coefficient delivers reliable steam capacity for zone control applications
- Two-position (open/close) operation for dependable on/off zone management
- Durable valve body construction built to withstand the demands of steam system pressures and temperatures
- Compatible with Erie series actuators for a complete zone valve assembly
- Compact form factor allows installation in tight mechanical spaces
Application
The VS2322 valve body is ideal for use in steam zone heating systems where individual zone control is required. It is commonly installed in commercial buildings, multi-family residential properties, and light industrial facilities that rely on steam distribution for space heating. When paired with the appropriate Erie actuator, the assembly provides reliable two-position control to open or close steam flow to individual zones on demand.
Product Specifications
- Brand: Schneider Electric (Erie)
- Model / SKU: VS2322
- Connection Size: 3/4″
- Connection Type: NPT (National Pipe Thread)
- Valve Configuration: Two-Way
- Flow Coefficient (Cv): 2.5
- Operation: Two-Position (Open/Close)
- Media: Steam
- Component: Valve Body Only (actuator sold separately)
Why Choose the Erie VS2322?
Erie zone valves by Schneider Electric are a trusted name in the HVAC and hydronic heating industry, known for their robust construction and long service life. The VS2322 valve body is engineered to meet the rigorous demands of steam systems, providing dependable zone isolation and flow control cycle after cycle. Its NPT threading ensures compatibility with standard pipe fittings, making installation straightforward for experienced technicians.
