Description

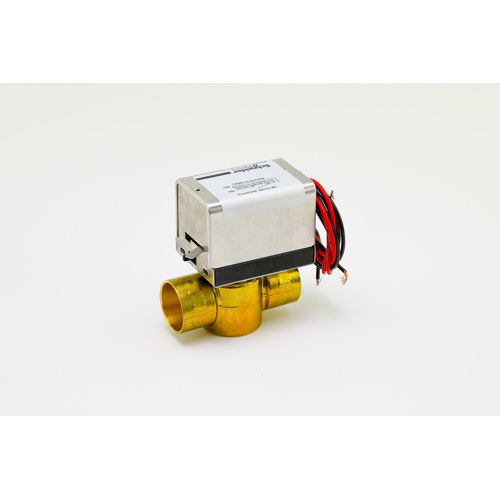

The Schneider Electric (Erie) VT2517G13A02A is a two-way, normally closed zone valve assembly engineered for precise hydronic and HVAC zoning applications. Featuring a spring return mechanism and an integrated end switch, this valve assembly delivers dependable, fail-safe operation in residential and light commercial heating and cooling systems.
Product Overview
The VT2517G13A02A combines a robust valve body with a reliable actuator in a single, ready-to-install assembly. The normally closed design ensures the valve defaults to the closed position upon power loss, protecting your system from unintended flow. The spring return actuator provides fast, consistent response, while the built-in end switch enables downstream control sequencing — such as energizing a circulator pump — when the valve reaches the fully open position.
Key Features
- Two-way, normally closed (NC) valve configuration
- 1-1/4″ sweat (solder) end connections for easy copper pipe installation
- 8.0 Cv flow coefficient for optimized hydronic system performance
- 24VAC operating voltage — compatible with standard zone control systems
- Spring return actuator for fail-safe, normally closed operation
- Two-position (open/close) control — simple ON/OFF zone management
- Integrated end switch for auxiliary device sequencing (e.g., circulator pump activation)
- Complete valve and actuator assembly — no field assembly required
Specifications
- SKU / Part Number: VT2517G13A02A
- Brand: Schneider Electric (Erie)
- Valve Type: Two-Way, Normally Closed
- Connection Size: 1-1/4″
- Connection Type: Sweat (Solder)
- Flow Coefficient (Cv): 8.0
- Control Voltage: 24VAC
- Actuator Type: Spring Return
- Control Action: Two-Position (On/Off)
- End Switch: Included
Applications
- Hydronic heating and cooling zone control
- Residential and light commercial zoning systems
- Fan coil unit control
- Chilled water and hot water distribution systems
- Zone valve panel integration with circulator pump sequencing
