Description

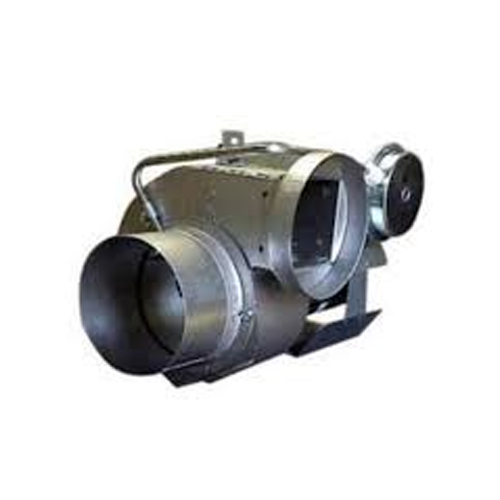

The Field Controls 46245702 Power Venter is an indoor-mounted, factory-integrated venting solution designed to support single 24 VAC-controlled gas or LP furnaces, boilers, or water heaters—even including 30 mV gas-fired water heaters. This ETL-listed unit streamlines safety and efficiency by bringing power ventilation, pressure proving, and post-purge control into one compact unit. A separate vent hood is required to complete the system.
Features:
- 115V/60Hz/2.1A
- 3000 RPM
- Thermal protection
- Thermostat or aquastat calls for heat and starts the power venter
- The pressure switch senses sufficient air flow and allows burners to start
- The power venter draws combustion air through the system and forces gases outside through an external vent hood
- Draft hood or barometric draft control between the appliances and the power venter maintains consistent air flow
- After the thermostat is satisfied, the burner shuts down and the post purge control clears the venting system of combustion gases
