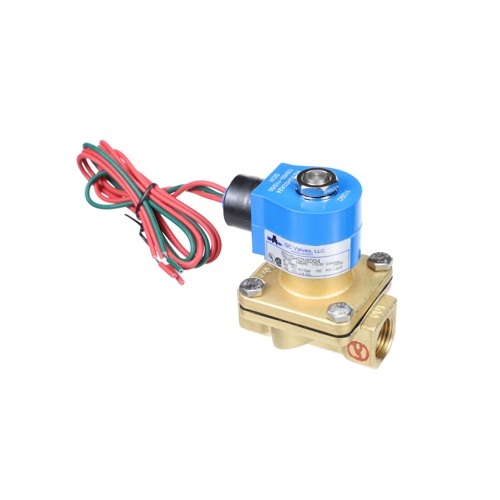

GC Valves S211GH02N5DG4 1/2″ N/C 5-200 PSI 120V Brass Solenoid Valve

Description

The GC Valves S211GH02N5DG4 is a 1/2″ normally closed (N/C) brass solenoid valve engineered for dependable fluid shutoff in a wide range of HVAC, plumbing, and industrial applications. With a broad operating pressure range of 5 to 200 PSI and a 120V AC coil, this valve delivers consistent, responsive performance in demanding system environments.

Key Features

• 1/2″ pipe connection for easy integration into standard piping systems
• Normally closed (N/C) operation — valve closes automatically when de-energized for fail-safe shutoff
• Operating pressure range: 5–200 PSI
• 120V AC coil voltage for compatibility with common line-voltage control circuits
• Brass body construction for corrosion resistance and long service life
• Suitable for water, air, and compatible fluid media

Application

The S211GH02N5DG4 is ideal for use in HVAC hydronic systems, water supply lines, irrigation controls, and other fluid management applications where reliable automated shutoff is required. The normally closed design ensures the valve defaults to a closed position during power loss, providing an added layer of system protection.

Specifications

• SKU: S211GH02N5DG4
• Brand: GC Valves
• Connection Size: 1/2″
• Operation: Normally Closed (N/C)
• Pressure Range: 5–200 PSI
• Coil Voltage: 120V AC
• Body Material: Brass
