Description

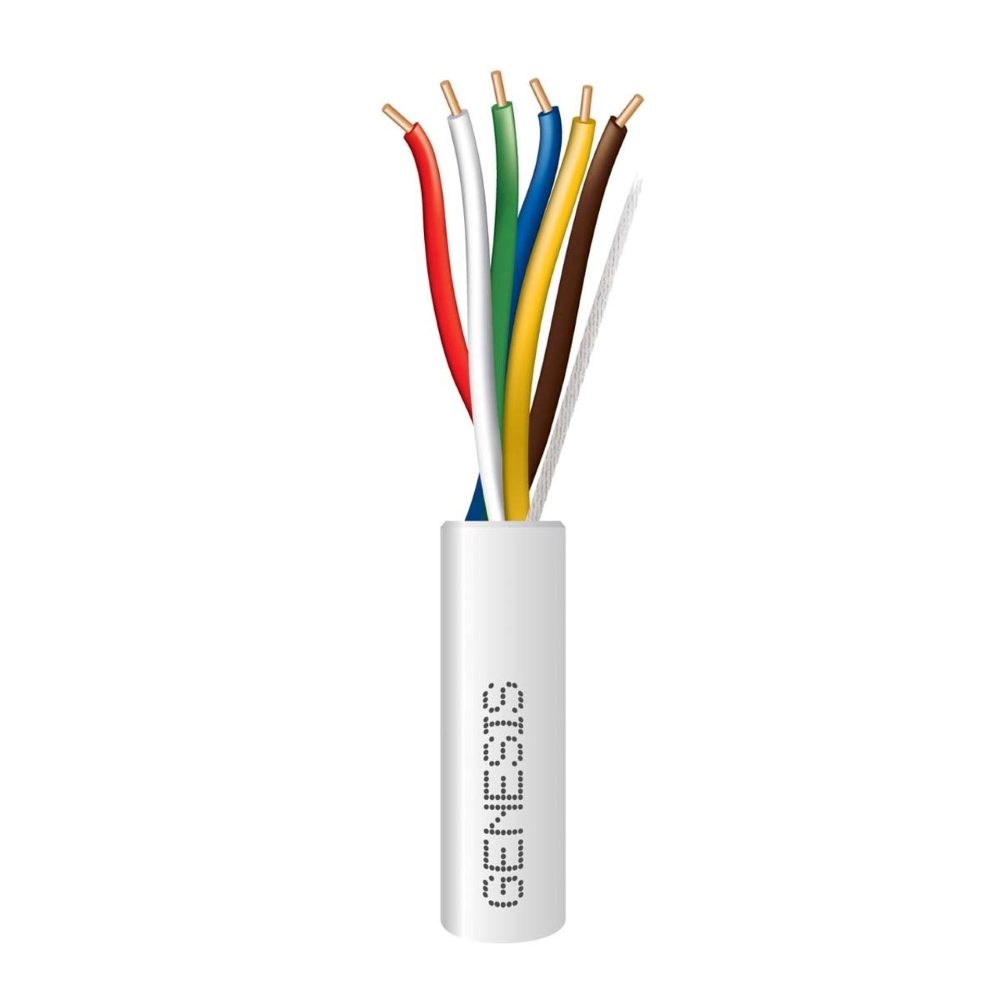

This Genesis cable features 6 solid 18 AWG copper conductors and a plenum rating. Choose this cable for a dependable thermostat wiring solution.
18 AWG 6 Solid Conductors
- Ratings: CL2P, FT6
- Approvals: ETL Listed
Construction
- Conductor: 18AWG Solid Bare Copper
- Conductor Count: 6
- Insulation Plenum: PVC (0.006" nom.)
- Insulation Colors: Red, White, Green, Blue, Yellow, Brown
- Lay Length: 24" nom.
- Shielding: N/A
- Rip Cord: Yes
- Jacket Plenum: PVC (0.015 " nom.)
- Overall Diameter: 0.188" nom.
Properties
- Operating Voltage: 150 Volts max.
- DC Resistance: 6.52 Ohms/1000' at 20°C
- Capacitance: 22.8 pF/ft. nom.
- Impedance: 67 Ohms nom.
- Temperature: -20°C to 60°C
- Flame Rating: NFPA 262 (Plenum); CSA C22.2 No. 2556 (FT6)
- RoHS Compliant: Yes
- Country of Origin: USA
