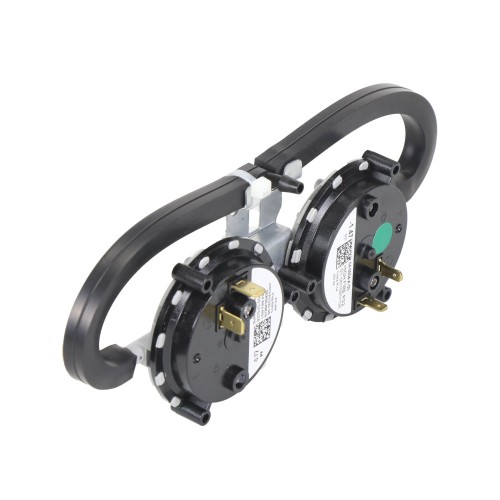

Goodman 0130F00436S Pressure Switch -.72/-1.47 W.C.

Description

The Goodman 0130F00436S is an OEM replacement pressure switch designed for use in Goodman and Amana gas furnaces and air handlers. This dual-setpoint pressure switch monitors negative pressure generated by the inducer motor to verify proper draft and venting operation before allowing the furnace to proceed through the ignition sequence — a critical safety function that protects against unsafe combustion conditions.

How It Works

The pressure switch is a normally open (NO) safety device that closes when the inducer motor creates sufficient negative pressure in the flue system. If adequate draft pressure is not established or is lost during operation, the switch opens and interrupts the control board signal, locking out the ignition sequence to prevent unburned gas accumulation and potential hazards.

Key Specifications

• OEM Part Number: 0130F00436S
• Compatible Brand: Goodman / Amana
• Switch Type: Dual-setpoint pressure switch
• Setpoint 1: -0.72″ W.C. (inches water column)
• Setpoint 2: -1.47″ W.C. (inches water column)
• Application: Gas furnace inducer/draft pressure sensing
• Function: Normally open (NO) safety switch

Features & Benefits

• Direct OEM replacement for Goodman and Amana furnace models
• Dual pressure setpoints provide staged safety monitoring for multi-speed or two-stage inducer applications
• Ensures proper draft and venting before ignition sequence proceeds
• Protects against flue blockages, inducer motor failure, and improper venting conditions
• Drop-in replacement minimizes installation time and callbacks
• Built to OEM specifications for reliable, long-term performance

Application

This pressure switch is intended for use in Goodman and Amana brand gas furnaces. Always cross-reference the OEM part number 0130F00436S against your unit’s model and serial number or existing pressure switch label before installation. Consult the furnace service manual for proper wiring and mounting procedures.
