Description

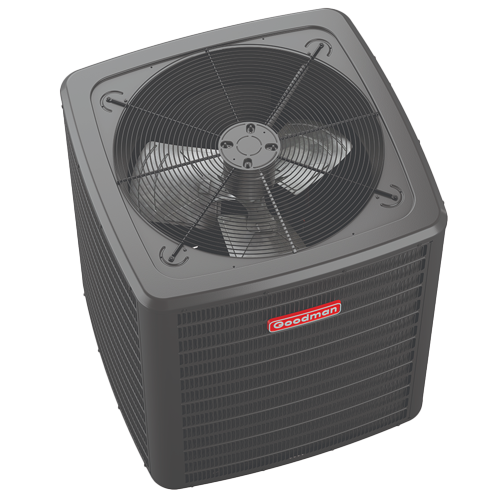

The Goodman GLXS5B is a 15.2 SEER2 split system air conditioner condenser available in multiple tonnage sizes to match the cooling load of the installation. Across all sizes, the core technology is identical: a high-efficiency scroll compressor paired with R-32 refrigerant, a low-GWP alternative to R-410A that’s becoming the standard for new Goodman equipment. Made in USA.
The condenser coil uses copper tube construction with enhanced aluminum fin design on 1.5–3.0 ton units, maximizing heat transfer efficiency. Units ship fully charged for 15 feet of tubing length and include a factory-installed filter drier, service valves with sweat connections, and easy-to-access gauge ports for streamlined installation. The heavy-gauge galvanized-steel cabinet features a removable grille-style top design compliant with UL 60335-2-40, an Architectural Gray powder-paint finish rated for 500-hour salt-spray resistance, and a steel louvered coil guard. When properly anchored, the cabinet meets 2023 Florida Building Code integrity requirements for hurricane-type winds.
An enclosed contactor with lug connection, ground lug connection, and high-pressure switch come standard across the line. All sizes are AHRI certified and ETL listed, and each condenser requires a matched R-32 indoor coil or air handler to complete the system.
R-32 Refrigerant
The GLXS5B operates on R-32 refrigerant, a next-generation, lower global warming potential (GWP) refrigerant that supports environmental compliance and future-ready system design. R-32 offers excellent thermodynamic properties that contribute to the unit’s strong efficiency ratings while aligning with evolving industry and regulatory standards.
Scroll Compressor Technology
At the heart of the GLXS5B is a high-efficiency scroll compressor. Scroll compressors are widely recognized in the HVAC industry for their smooth, quiet operation, fewer moving parts, and superior reliability compared to traditional reciprocating compressors. This design translates to longer service life, reduced vibration, and consistent cooling output across varying load conditions.
Key Features
- High-efficiency scroll compressor with R-32 refrigerant (A2L, low-GWP) across the full size range
- 15.2 SEER2 rated efficiency
- Heavy-gauge galvanized-steel cabinet with salt-spray-rated powder finish and steel coil guard
- Factory-charged for 15′ of tubing with filter drier, sweat-connection service valves, and easy-access gauge ports
- AHRI Certified, ETL Listed, and built to 2023 Florida Building Code wind-resistance standards when anchored
Applications
The Goodman GLXS5B is ideal for new construction and replacement installations where efficiency, reliability, and value are top priorities. Its multi-size availability makes it a versatile solution for HVAC contractors and distributors serving a broad range of residential cooling projects.
Why Choose the Goodman GLXS5B?
Goodman has built a legacy of delivering dependable HVAC equipment at competitive price points. The GLXS5B continues that tradition by combining modern R-32 refrigerant technology, scroll compressor efficiency, and a 15.2 SEER2 rating into a condenser platform that meets current efficiency regulations and prepares installers for the future of residential cooling.
