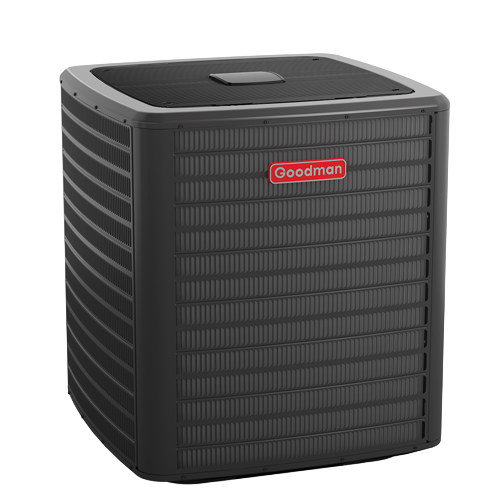

Goodman GLXT7C 17.2 SEER2 Two-Stage Split System AC Condenser | R-32 Refrigerant | Multiple Sizes

Description

The Goodman GLXT7C is a 17.2 SEER2 two-stage split system air conditioner available in 2, 3, 4, and 5-ton sizes. Two-stage operation lets the system run at reduced capacity during mild conditions and step up to full output only when demand is highest, improving comfort consistency, dehumidification, and energy use compared to single-stage equipment.

At the core is a Two-Stage Copeland® Ultra-Tech scroll compressor, backed by a quiet two-speed ECM outdoor fan motor. The condenser coil uses a copper tube/enhanced aluminum fin design (5mm on 2.0–3.0 ton) to maximize heat transfer, and the system runs on R-32 refrigerant, fully charged for 15 feet of tubing length.

This air conditioner uses integrated communicating ComfortBridge™ technology, requiring only two low-voltage wires to the outdoor unit in communicating mode, with a color-coded terminal strip also available for non-communicating setup. Commissioning and diagnostics run through the indoor board’s Bluetooth connection using the CoolCloud™ phone and tablet app, backed by Copeland® ComfortAlert™ built-in diagnostics.

The cabinet uses a new Venturi top panel design for improved airflow and reduced noise, with a heavy-duty steel cabinet, baked-on powder-paint finish, a steel louver coil guard with rust-resistant screws, and a high-density foam compressor sound blanket for quiet operation. Factory-installed components include a filter drier, transformer, and high- and low-pressure switches, along with ambient temperature sensors and a ground lug connection. When properly anchored, the unit meets 2023 Florida Building Code requirements for hurricane-type wind integrity.

Designed, engineered, and assembled in the USA. AHRI Certified, ETL Listed. Backed by a 10-year parts limited warranty and limited lifetime compressor warranty, requiring online registration within 60 days of installation (registration requirements vary by state).

Select the correct tonnage below based on your Manual J load calculation and matched indoor coil or air handler.

Features:

• 17.2 SEER2 two-stage split air conditioner — available in 2, 3, 4, and 5-ton

• Two-Stage Copeland® Ultra-Tech scroll compressor

• Quiet two-speed ECM outdoor fan motor

• Copper tube/enhanced aluminum fin coil (5mm on 2.0–3.0 ton)

• R-32 refrigerant, fully charged for 15′ of tubing length

• Integrated communicating ComfortBridge™ technology — only 2 low-voltage wires in communicating mode; standard wiring also supported

• On-board Bluetooth commissioning and diagnostics via the CoolCloud™ app

• Copeland® ComfortAlert™ built-in diagnostics

• Venturi top panel design for improved airflow and reduced noise

• Heavy-duty steel cabinet with baked-on powder-paint finish and high-density foam compressor sound blanket

• Steel louver coil guard with rust-resistant screws

• Factory-installed filter drier, transformer, and high-/low-pressure switches

• Meets 2023 Florida Building Code hurricane wind integrity requirements (anchor kits available)

• AHRI Certified | ETL Listed | Made in USA

• 10-year parts warranty, limited lifetime compressor warranty (registration required)
