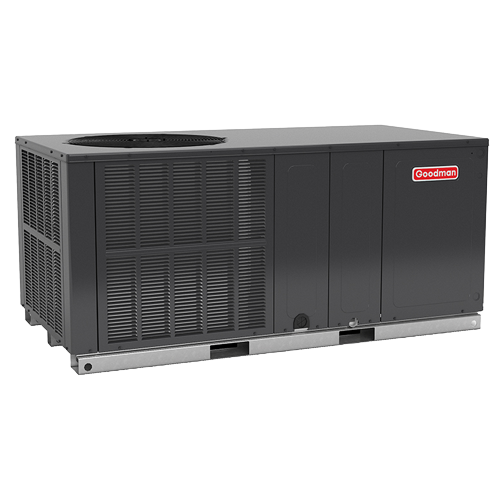

Goodman GPCH3 13.4 SEER2 Packaged Air Conditioner | Horizontal | R-32 Refrigerant | Multiple Sizes

Description

The Goodman GPCH3 is an all-in-one packaged air conditioner rated at 13.4 SEER2, available in 2 to 5-ton sizes, built specifically for horizontal ductwork installations with quiet horizontal discharge. It combines the full cooling system into a single, fully charged cabinet — approved for ground-level or rooftop applications, including manufactured or modular homes. A 5 kW to 20 kW electric heat kit is available as a field-installed option for homes that need supplemental heating from the same cabinet.

At the core is an energy-efficient scroll compressor — single-stage on 2 to 4-ton sizes, and two-stage on the 5-ton unit for better part-load efficiency — paired with a multi-speed ECM indoor blower motor for efficient, quiet air circulation. A copper tube/aluminum fin condenser coil and all-aluminum evaporator coil maximize surface area and heat transfer, and a totally enclosed, permanently lubricated condenser fan motor adds to long-term durability.

The heavy-gauge galvanized-steel cabinet has a UV-resistant powder-paint finish and a sound-insulated blower compartment with convenient access panels for quick installation and easy service. When properly anchored, the unit meets 2023 Florida Building Code requirements for hurricane-type wind integrity.

Designed, engineered, and assembled in the USA. AHRI Certified, ETL Listed. Backed by a 10-year parts limited warranty, requiring online registration within 60 days of installation (registration requirements vary by state).

Select the correct tonnage below based on your Manual J load calculation and ductwork configuration.

Features:

• 13.4 SEER2 packaged air conditioner — available in 2 to 5-ton sizes

• Horizontal-discharge-only design — approved for manufactured/modular homes

• Energy-efficient scroll compressor — single-stage (2–4 ton), two-stage (5 ton)

• Multi-speed ECM indoor blower motor

• Copper tube/aluminum fin condenser coil; all-aluminum evaporator coil

• Totally enclosed, permanently lubricated condenser fan motor

• Fully charged system; R-32 refrigerant

• 5 kW to 20 kW electric heat kit available as a field-installed option

• Heavy-gauge galvanized-steel cabinet with UV-resistant powder-paint finish

• Sound-insulated blower compartment with convenient access panels

• Meets 2023 Florida Building Code hurricane wind integrity requirements (anchor kits available)

• AHRI Certified | ETL Listed | Made in USA

• 10-year parts limited warranty (registration required)
