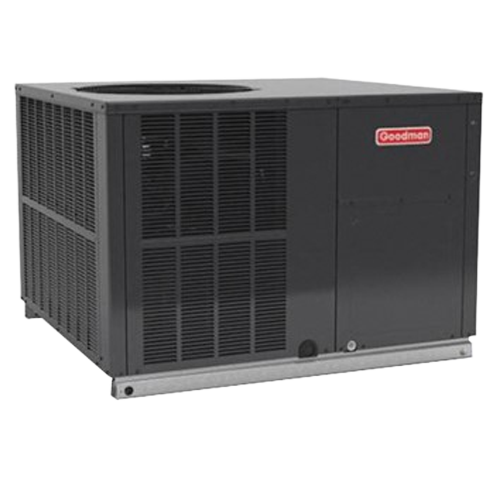

Goodman GPHM3 13.4 SEER2 Packaged Heat Pump | Downflow/Horizontal | R-32 Refrigerant | Multiple Sizes

Description

The Goodman GPHM3 is an all-in-one packaged heat pump rated at 13.4 SEER2 and 6.7 HSPF2, available in 2 to 5-ton sizes. It combines the cooling and heating sections into a single cabinet — with no separate indoor and outdoor units — for straightforward installation, and is convertible for horizontal or downflow ductwork configurations. It uses R-32 refrigerant for reduced environmental impact and can be paired with a field-installed electric heat kit for supplemental heating.

At the core is an energy-efficient scroll compressor with an internal relief valve for dependable, consistent performance — single-stage across most of the lineup, with two-stage cooling on the 5-ton unit for better part-load efficiency. An all-aluminum evaporator coil pairs with copper tube/aluminum fin condenser coils, a liquid-line filter drier, and a totally enclosed, permanently lubricated condenser fan motor for reliable, low-maintenance operation. A multi-speed ECM indoor blower motor circulates air efficiently and quietly.

The heavy-gauge galvanized-steel cabinet has an attractive two-tone Nickel Gray powder-paint finish, a fully insulated air-handling compartment with convenient access panels, and a compressor sound blanket for quieter operation.

Designed, engineered, and assembled in the USA. Backed by a 10-year parts limited warranty, requiring online registration within 60 days of installation (registration requirements vary by state).

Select the correct tonnage below based on your Manual J load calculation and ductwork configuration.

Features:

• 13.4 SEER2 / 6.7 HSPF2 packaged heat pump — available in 2 to 5-ton sizes

• All-in-one cabinet — no separate indoor/outdoor units, simplified installation

• Energy-efficient scroll compressor with internal relief valve; two-stage cooling on 5-ton unit

• Multi-speed ECM indoor blower motor

• R-32 refrigerant

• Convertible airflow: horizontal or downflow application

• All-aluminum evaporator coil; copper tube/aluminum fin condenser coils

• Liquid-line filter drier; totally enclosed, permanently lubricated condenser fan motor

• Electric heat kit available as a field-installed option

• Heavy-gauge galvanized-steel cabinet with Nickel Gray powder-paint finish and compressor sound blanket

• Fully insulated air-handling compartment with convenient access panels

• 10-year parts limited warranty (registration required)
