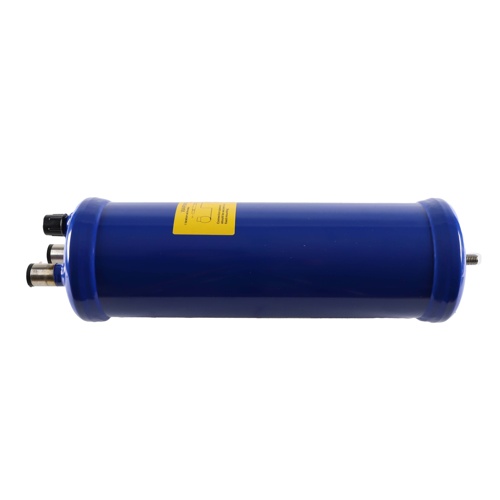

Henry Technologies S-5585 5/8 ODS x 3/8 FL Return Oil Separator

Description

Henry Technologies S-5585 Return Oil Separator

The Henry Technologies S-5585 is a high-performance return oil separator engineered to remove entrained compressor oil from refrigerant vapor before it circulates through the system. By continuously returning separated oil to the compressor crankcase, this unit helps maintain proper lubrication, protects compressor longevity, and maximizes overall system efficiency.

Key Features

• 5/8″ ODS inlet/outlet connection for easy field installation
• 3/8″ FL oil return port for direct compressor crankcase connection
• Efficient oil separation reduces oil fouling on heat transfer surfaces
• Continuous oil return design protects compressor from oil starvation
• Durable construction built to withstand demanding refrigeration and air conditioning environments
• Compact design for flexible installation in tight mechanical spaces

Why Use an Oil Separator?

Oil circulating through a refrigeration system reduces heat transfer efficiency and can starve the compressor of needed lubrication. The Henry Technologies S-5585 captures oil droplets entrained in the refrigerant discharge stream and automatically returns them to the compressor, keeping the system running cleanly and reliably.

Typical Applications

• Commercial refrigeration systems
• Air conditioning and heat pump systems
• Low and medium temperature refrigeration
• Systems with long refrigerant line runs where oil return is critical

Specifications

• Brand: Henry Technologies
• Model: S-5585
• Inlet/Outlet Connection: 5/8″ ODS
• Oil Return Connection: 3/8″ FL
• Type: Return Oil Separator
