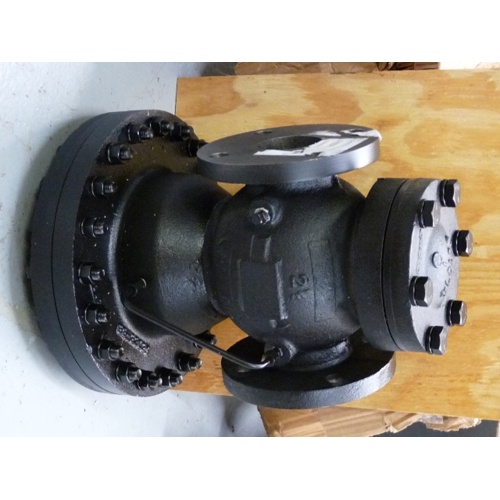

Xylem-Hoffman Specialty 2200 Series Steam Regulating Main Valve
The Xylem-Hoffman Specialty 402541 is a heavy-duty 2-1/2″ steam regulating main valve engineered for reliable pressure and flow control in commercial and industrial steam heating systems. Built on the proven 2200 Series platform, this valve delivers consistent performance in demanding hydronic and steam applications.
Key Features
- 2-1/2″ pipe size for high-capacity steam system installations
- ANSI Class 125 flanged end connections for secure, leak-free installation
- Full port design minimizes pressure drop and maximizes flow capacity
- Cast iron body construction provides exceptional durability and corrosion resistance
- 125 PSI maximum working pressure rating for safe, reliable operation
- 2200 Series design — a trusted platform for steam regulating main valve applications
Specifications
- SKU: 402541
- Brand: Xylem-Hoffman Specialty
- Series: 2200
- Valve Type: Steam Regulating Main Valve
- Pipe Size: 2-1/2″
- End Connection: ANSI Class 125 Flange
- Port Configuration: Full Port
- Body Material: Cast Iron
- Maximum Pressure: 125 PSI
Applications
- Commercial and industrial steam heating systems
- Main steam line pressure regulation
- Hydronic and steam distribution piping
- Boiler plant and mechanical room installations
