Description

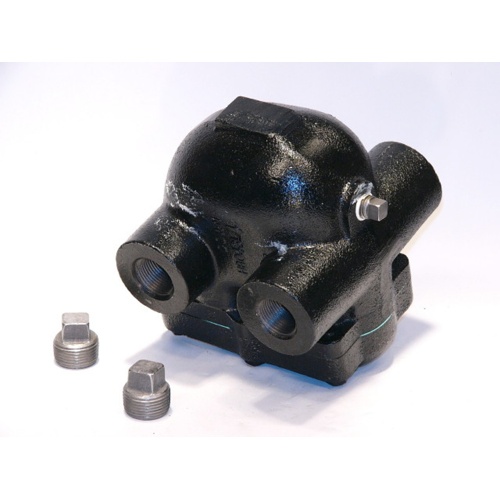

The Hoffman Specialty 404202 is a Series H Cast Iron Float & Thermostatic (F&T) Steam Trap engineered for dependable condensate removal and air venting in low- to medium-pressure steam systems. Featuring a 3/4″ NPT connection and a 30 PSI maximum operating pressure, this trap is well-suited for commercial and industrial hydronic and steam heating applications where consistent performance and long service life are essential.
The integrated thermostatic air vent automatically purges non-condensable gases from the system, improving heat transfer efficiency and reducing the risk of air binding. The .235″ orifice is sized to deliver optimal condensate discharge rates matched to the 30 PSI pressure rating.
Key Features
- Series H Cast Iron body construction for durability in demanding steam environments
- Float & Thermostatic (F&T) design for continuous condensate discharge and automatic air venting
- 3/4″ NPT connections for straightforward installation into standard steam piping
- 30 PSI maximum operating pressure rating
- .235″ orifice for optimized condensate flow at rated pressure
- Integrated thermostatic air vent eliminates non-condensable gases automatically
- Suitable for commercial and industrial steam heating and process applications
Specifications
- SKU: 404202
- Model: FT030H-3
- Series: H
- Body Material: Cast Iron
- Connection Size: 3/4″ NPT
- Maximum Operating Pressure: 30 PSI
- Orifice Size: .235″
- Trap Type: Float & Thermostatic (F&T)
- Air Vent: Thermostatic
- Brand: Hoffman Specialty (Xylem)
Applications
- Commercial and industrial steam heating systems
- Unit heaters, convectors, and heat exchangers
- Low- to medium-pressure steam distribution piping
- Process steam equipment requiring reliable condensate management
