Description

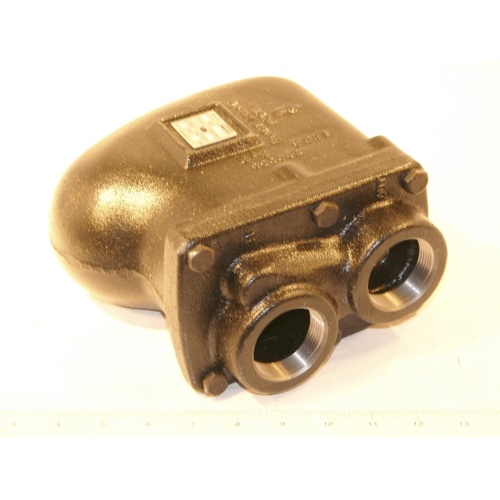

The Xylem-Hoffman Specialty Series C Float & Thermostatic (F&T) Steam Trap (Model FT125C-6, SKU 404236) is a reliable, high-performance steam trap engineered for demanding hydronic and steam heating systems. Built with a rugged cast iron body, this trap efficiently handles condensate discharge while venting non-condensable gases — keeping your steam system operating at peak efficiency.
Key Features
- Series C cast iron construction for durability in commercial and industrial steam systems
- 1-1/2″ NPT connections for straightforward installation into standard piping
- 125 PSI maximum working pressure rating for reliable performance in medium-pressure steam applications
- .246″ orifice size for controlled, efficient condensate discharge
- Integrated thermostatic air vent automatically purges air and non-condensable gases on startup and during operation
- Float & thermostatic design provides continuous condensate drainage and superior air elimination
- Hoffman Specialty Series C proven design trusted in commercial HVAC and process steam applications
Product Specifications
- Model: FT125C-6
- SKU: 404236
- Connection Size: 1-1/2″ NPT
- Maximum Working Pressure: 125 PSI
- Orifice Size: .246″
- Body Material: Cast Iron
- Series: C
- Trap Type: Float & Thermostatic (F&T)
Applications
- Commercial and industrial steam heating systems
- Unit heaters, heat exchangers, and steam coils
- Drip and tracer steam applications
- Process steam condensate removal
Why Choose Hoffman Specialty F&T Traps?
Hoffman Specialty has been a trusted name in steam system components for decades. The Float & Thermostatic design combines a float-operated valve for continuous condensate discharge with a thermostatic element that opens to vent air and non-condensable gases — eliminating water hammer, improving heat transfer, and extending system life. The Series C cast iron body is built to withstand the rigors of continuous steam service.
