Description

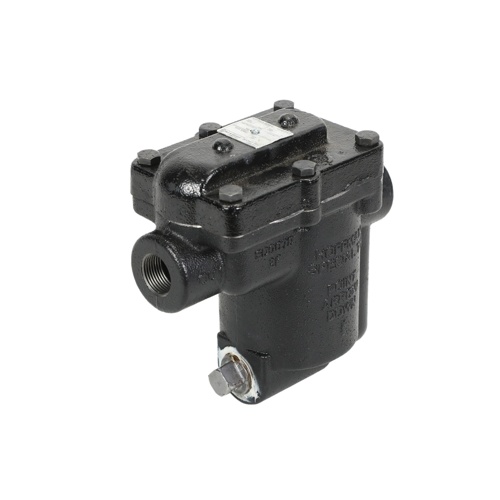

The Xylem-Hoffman Specialty Series B1 Inverted Bucket Steam Trap (Model B1125A-3, SKU 404336) is a dependable, heavy-duty solution engineered for efficient condensate removal in commercial and industrial steam systems. Built with a cast iron body, this trap delivers long-lasting durability in demanding hydronic and process steam applications.
Key Features
- Series B1 inverted bucket mechanism for reliable, continuous condensate discharge
- Cast iron body construction for robust, corrosion-resistant performance
- 3/4″ NPT connections for straightforward installation into standard steam piping
- 125 PSI maximum working pressure rating for a wide range of steam system applications
- .125″ orifice size for precise condensate and flash steam management
- Model B1125A-3 — a proven Hoffman Specialty design trusted by HVAC and mechanical contractors
How Inverted Bucket Traps Work
The inverted bucket steam trap operates on the principle of buoyancy. When steam enters the trap body, the inverted bucket floats upward, closing the discharge valve. As condensate accumulates and the bucket loses buoyancy, the valve opens and condensate is discharged. This continuous cycle ensures efficient condensate removal while preventing steam loss — maximizing system efficiency and protecting downstream equipment.
Typical Applications
- Commercial and industrial steam distribution systems
- Steam mains and branch line drip stations
- Heat exchangers and process heating equipment
- Unit heaters and steam coils
- Boiler room and mechanical room steam piping
Specifications
- Brand: Xylem-Hoffman Specialty
- Model: B1125A-3
- SKU: 404336
- Series: B1
- Body Material: Cast Iron
- Connection Size: 3/4″ NPT
- Maximum Working Pressure: 125 PSI
- Orifice Size: .125″
