Description
Enhance climate control precision in commercial and industrial HVAC systems with the Honeywell/Resideo H7735B2018, engineered to deliver accurate, real-time humidity and temperature readings directly from your ductwork.
Specifications

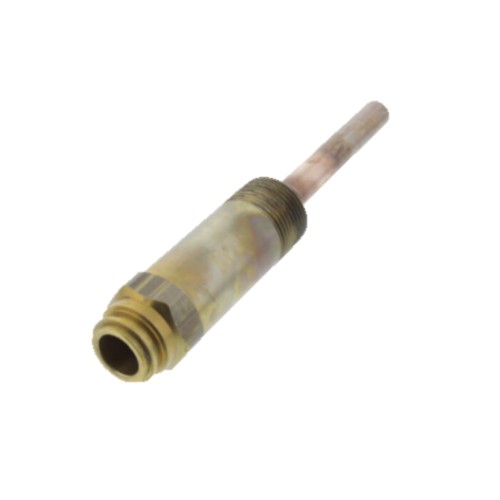

- Application: Immersion wells used with Aquastat to hold the temperature sensing bulb in the controlled medium and prevents leakage
- Product Features: Functional replacement for 121371M without clamp
- Compatible With: L4006 Aquastats, L4081 Aquastats
- For Use With: Aquastat Controllers
- Well: Yes
- Material: Copper (Cu)
- Operating Pressure (Max): 255 psi @ 300 °F, 1758 kPa @ 149 °C
- Bulb Diameter: 3/8 in
- Connection Size: 3/4 in – 14
- Connection Type: NPT
- Well Spud Size: 3/4 in, 19 mm
- Element Insertion Length: 3 in
- Insulation Depth: 3 in
