Description

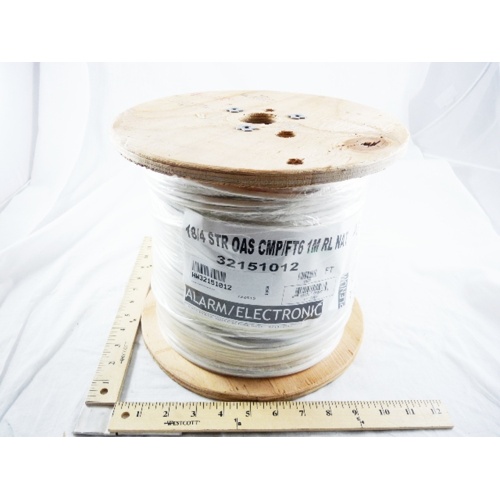

Honeywell 32151012 18/4 Stranded Overall Shielded Cable
The Honeywell 32151012 is a professional-grade, 18 AWG, 4-conductor stranded overall shielded cable engineered for demanding HVAC control, building automation, and low-voltage signal wiring applications. Supplied on a convenient 1,000-foot reel in a natural color finish, this cable is ready for large-scale commercial and industrial installations.
Key Features
- 18 AWG, 4-conductor (18/4) stranded copper construction for flexibility and reliable conductivity
- Overall shield provides superior protection against electromagnetic interference (EMI) and radio frequency interference (RFI)
- CMP (Plenum) rated — approved for installation in air-handling plenum spaces per NFPA 70
- CL2P rated — Class 2 Plenum power-limited circuit cable classification
- FT6 rated — meets Canadian Standards Association (CSA) requirements for plenum cable flame spread
- Natural color jacket for easy identification and labeling in multi-cable installations
- 1,000-foot reel packaging for efficient, tangle-free deployment on the job site
Certifications & Compliance
- CMP (Communications Plenum) — suitable for plenum air spaces
- CL2P — Class 2 Plenum rated per NEC standards
- FT6 — CSA plenum flame test certified
Typical Applications
- HVAC thermostat and control wiring
- Building automation system (BAS) signal wiring
- Low-voltage control circuits in commercial and industrial environments
- Plenum-rated installations where fire code compliance is required
- Sensor and actuator wiring in air-handling units and VAV systems
Product Specifications
- SKU: 32151012
- Conductor Size: 18 AWG
- Number of Conductors: 4
- Conductor Type: Stranded copper
- Shield Type: Overall shield
- Cable Length: 1,000 feet
- Packaging: Reel
- Jacket Color: Natural
- Ratings: CMP / CL2P / FT6
