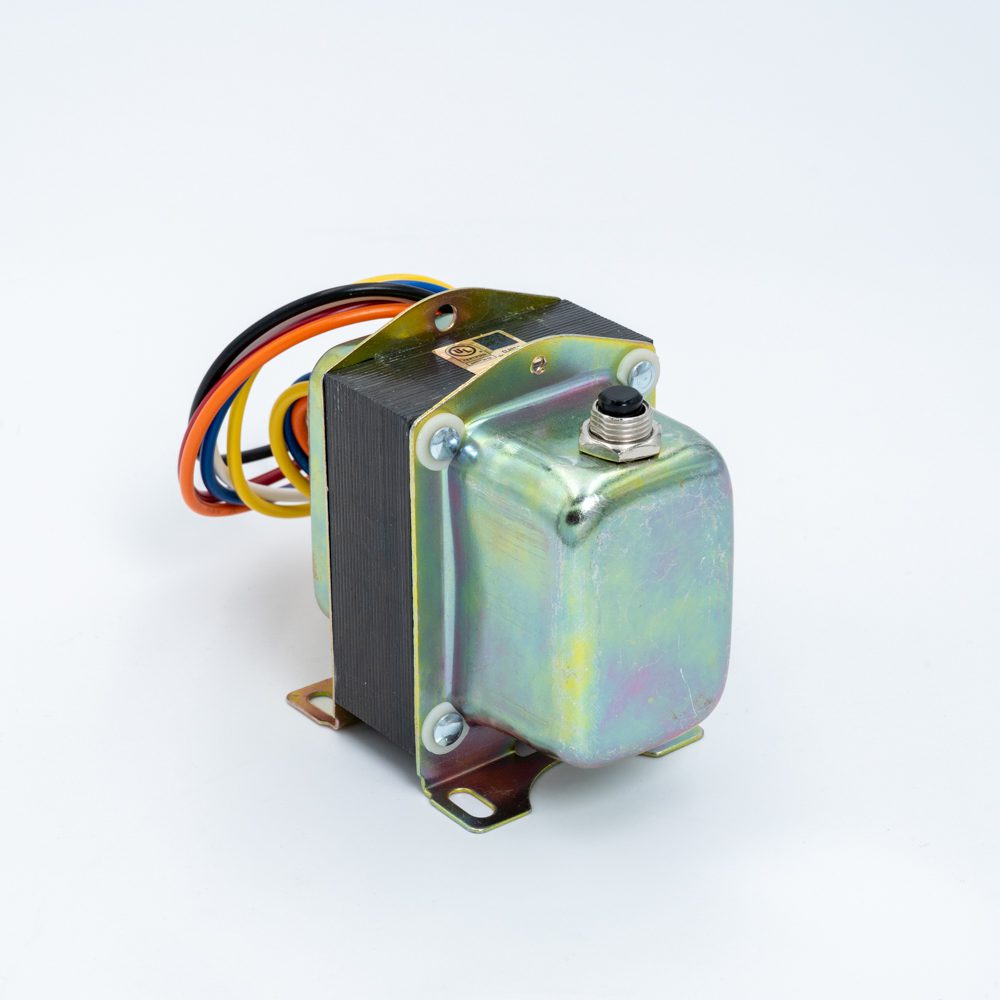

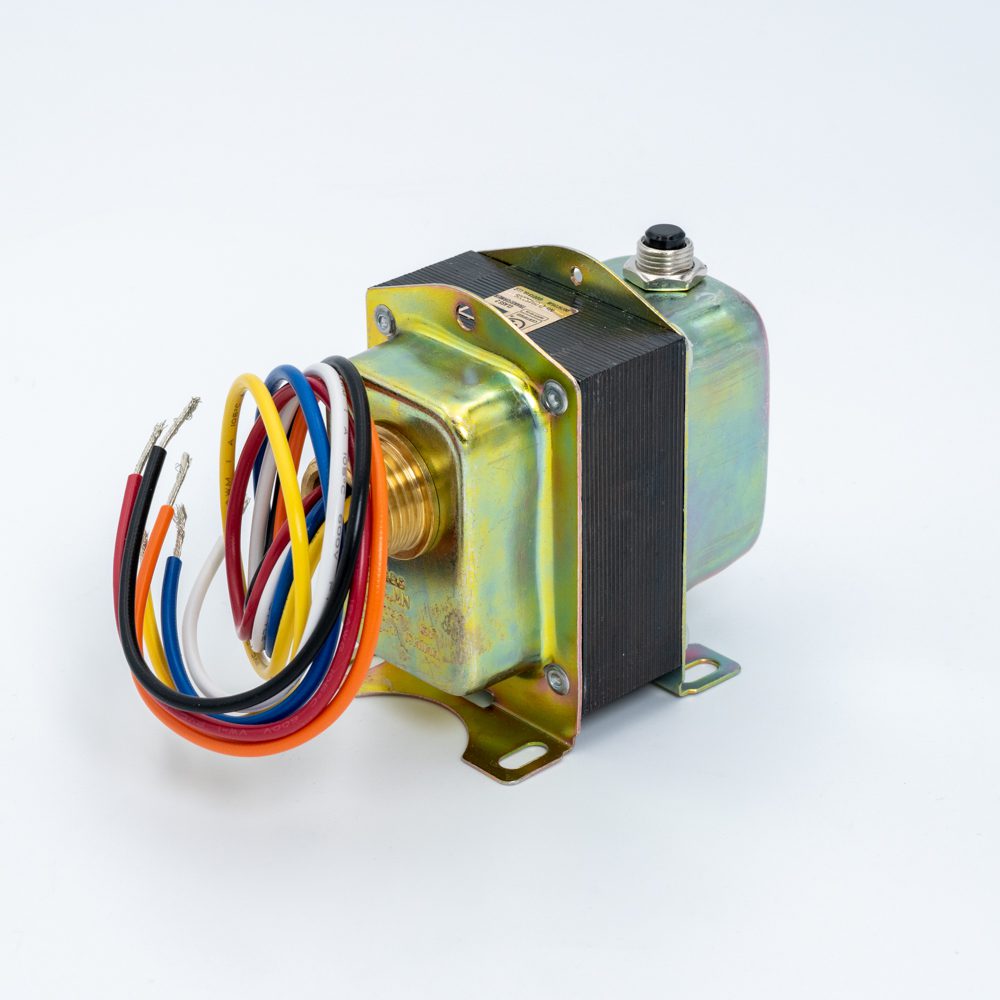

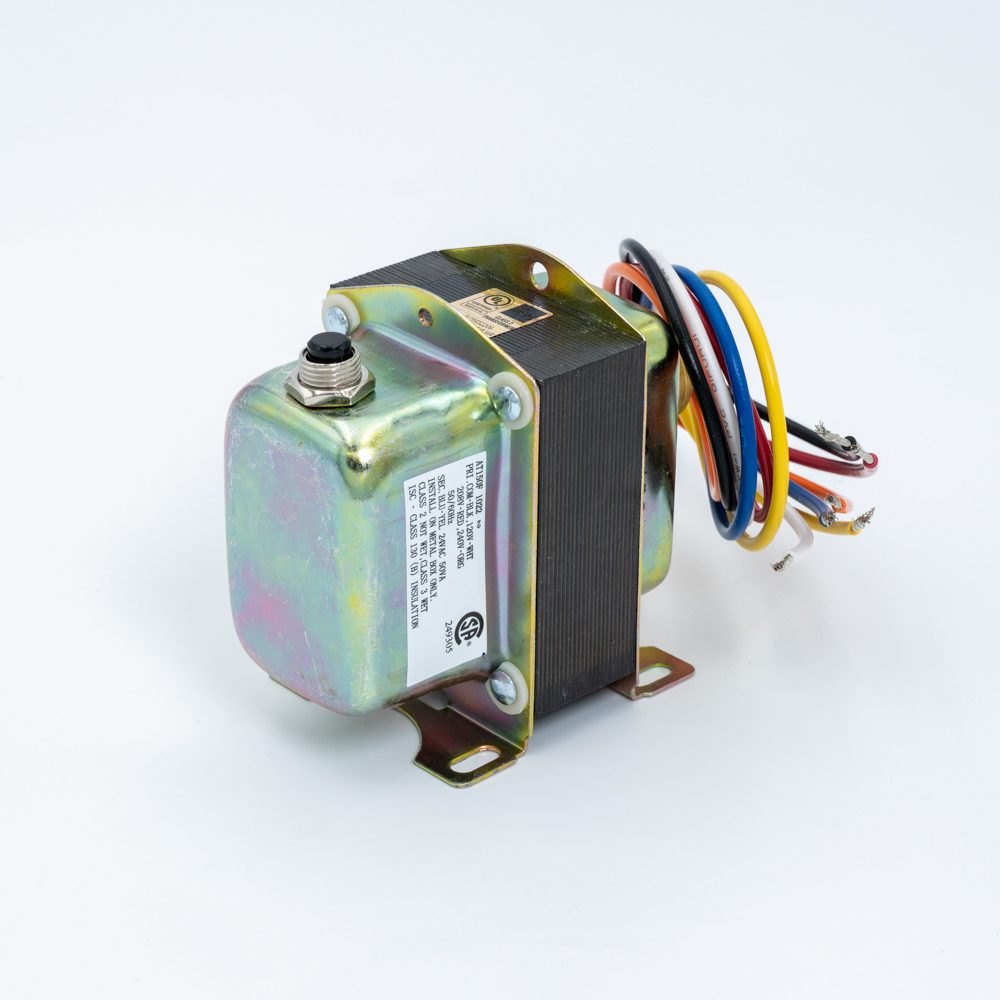

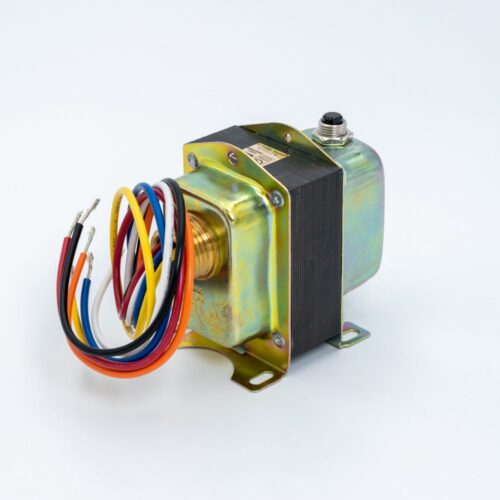

Honeywell AT150F1022 50VA Transformer, Plate and Panel Mount

Name: Honeywell AT150F1022 50VA Transformer, Plate and Panel Mount
SKU: AT150F1022
Price: 35 USD
Availability: InStock

$35.00

MSRP: $102.28

You save 66%

50 VA, Multi mount (plate/panel) 120/208/240 VAC Transformer

Availability:

3 In Stock

Description

Honeywell 50 VA general purpose transformers power 24Vac circuits.

Color-coded lead wires for primary connections and screw terminals for secondary connections
Includes fixed 1/4 inch (6mm) male quick-connects (AT150A models only) or color-coded lead wires for primary and secondary connections
Meets Underwriters Laboratories Standard UL 1585
Identified Class 2 not wet, Class 3 wet

Mount	and feet for surface mount., Includes 1/2 14 NPSM conduit connector and lock nut for mounting on plate or panel (not included) with 7/8 in knockout
Voltage (Secondary)	27.5 V.O.C.
Voltage (Primary)	120 VAC, 208 VAC, 240 VAC
Temperature	-20?F to 105?F (-29?C to 41?C)
Electrical Ratings, Output	24 VAC at 50 VA
Electrical Connection	9" Leadwires
Frequency	60 Hz
Color	Metallic
UPC	085267151115
