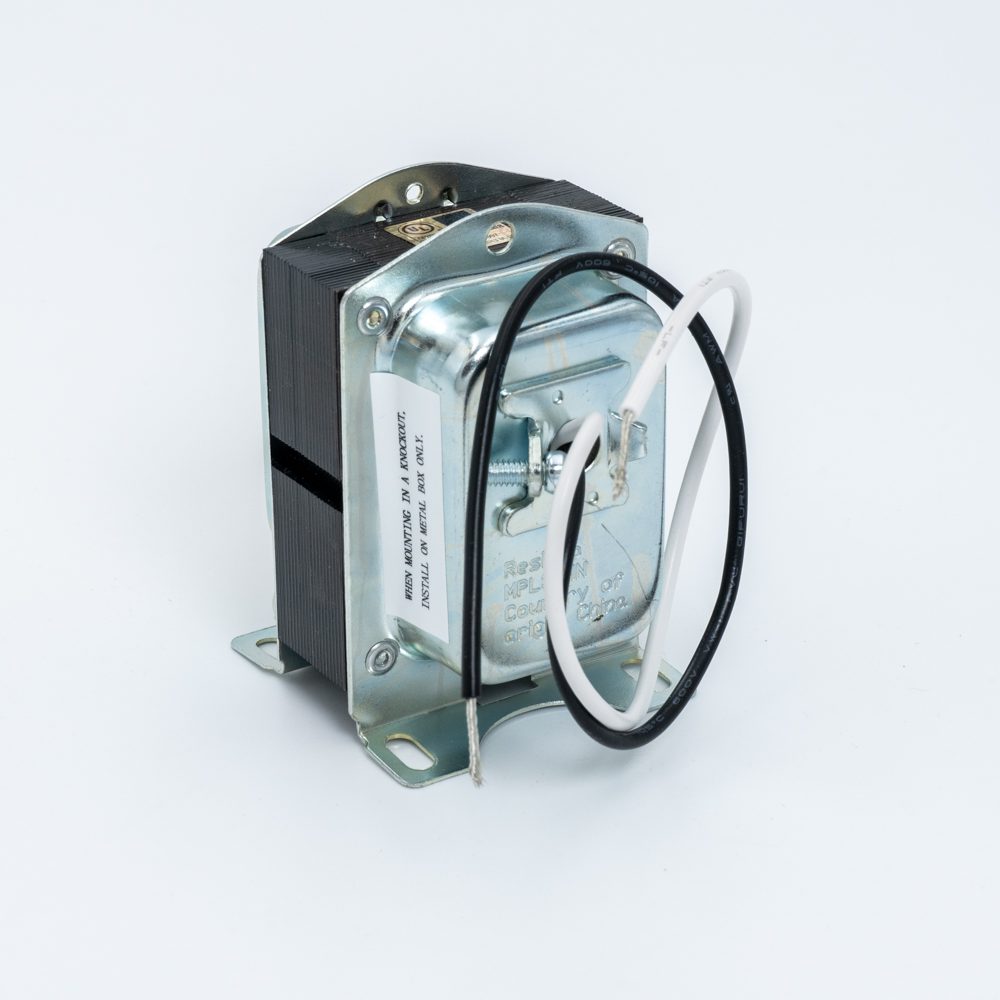

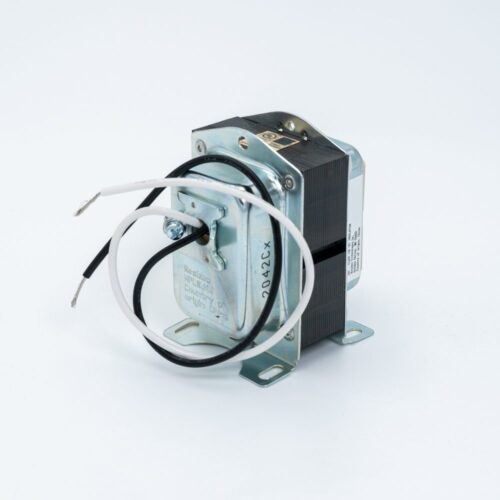

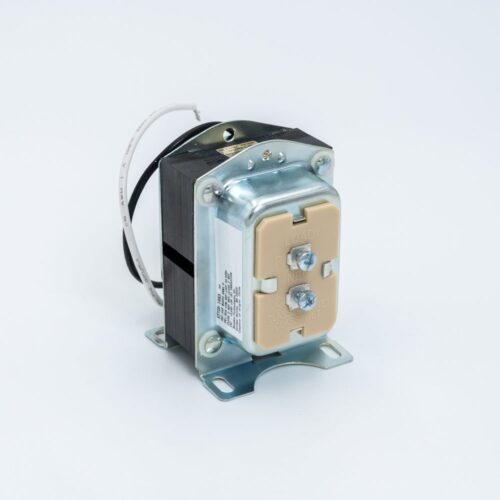

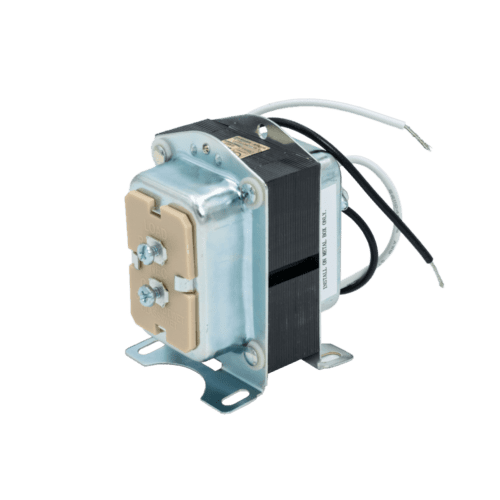

Honeywell AT72D1683 40VA Universal Mount Transformer

BRAND: Honeywell Home SKU: AT72D1683

(1 customer review)

$30.00

MSRP: $86.42
You save 65%

40VA Universal Mount 120VAC Transformer

Availability:

3 In Stock

Description

Honeywell 40 VA transformers power 24V systems including thermostats, gas valves and relays.

Features

  • Override protection
  • Color-coded lead wires for primary connections
  • Energy limiting and meets NEMA Standard DC20-1992
  • Transformers are marked NEMA Type D enclosure
  • Meets NEC Class 2 not wet, Class 3 wet and UL 1585 requirements

Additional information

Mount

Clamp Mounted via junction box knockout, Foot Mounted, or 2x4in electrical boxes (transformer all above plate or 3/4 above plate), Plate Mounted on 4×4" octagon

Voltage (Secondary)

26.5 V.O.C

Voltage (Primary)

120 VAC

Temperature

-20?F to 105?F (-29?C to 41?C)

Electrical Ratings, Output

24 VAC at 40 VA

Electrical Connection

9" Leadwires; (2) screw terminals

Frequency

50 Hz, 60 Hz

Color

Metallic

UPC 085267990103

1 review for Honeywell AT72D1683 40VA Universal Mount Transformer

  1. Cary G. (verified owner)

Add a review

Compatible Products

Jard
4011M
Mars
50302
Supco
SXT112
UEi
UET112
White-Rodgers
90-T40M1
