Description

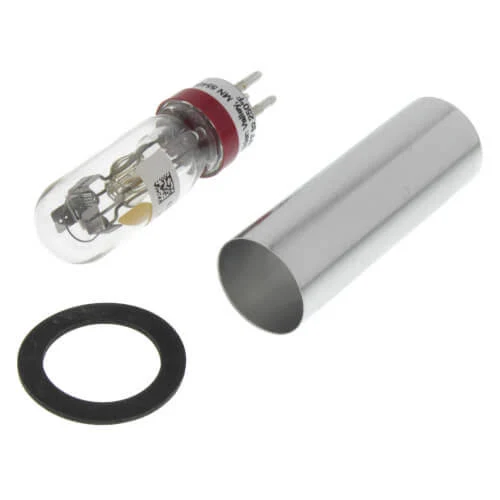

The Honeywell C7035A1080 Minipeeper UV Flame Sensor is a compact ultraviolet flame detector engineered for advanced flame supervision in gas, oil, and coal-fired burners. Designed to integrate seamlessly with Honeywell flame safeguard controls and ultraviolet amplifiers, this sensor offers rugged reliability and precision flame detection—even in challenging environments.
Specifications:
- Application: Gas, Oil or Coal fired burners
- Max Temp (F): 250°F
- Min Temp (F): 0°F
- Temperature Range (F): 0°F to 250°F
- Used With: R7249A Series, R7249B Series, R7849A Series, R7849B Series, R7749B Series, R7259 Series, R7290 Series
- NEMA Rating: 4, 3
- Lead Wire Length: 72″
- Diameter (Inches): 1-1/2″
- Length: 4-1/8″
