Description

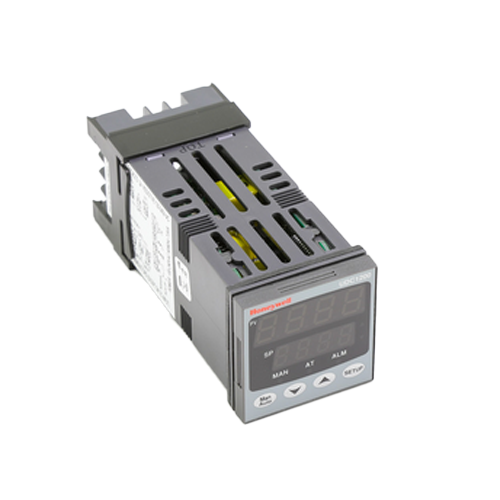

The Honeywell DC120171031000 Universal Digital Controller is a high-performance, microprocessor-based device designed for precise monitoring and control of temperature, pressure, and level in various industrial applications. Its compact 1/16 DIN size, dual 4-digit LED displays, and versatile input/output capabilities make it an ideal solution for environments where space is limited but functionality is paramount.
Specifications:
- Accuracy: 0.1 % of span ± 1 LSD
- Temperature Stability: 0.01 % of span per ºC
- Input Signal Failure: Fail-safe output value: Achieved when burnout is detected. Value depends on configuration. For thermocouple and mV input detected by any lead break: Upscale burnout. For RTD: Burnout detected by any lead break. Current or voltage input: Burnout set by ope
- Approvals: UL, FM approval on the UDC1200 Limit Model
- Alarms: Maximum number of alarms: 2 soft alarms setpoint + 1 loop alarm
