Description

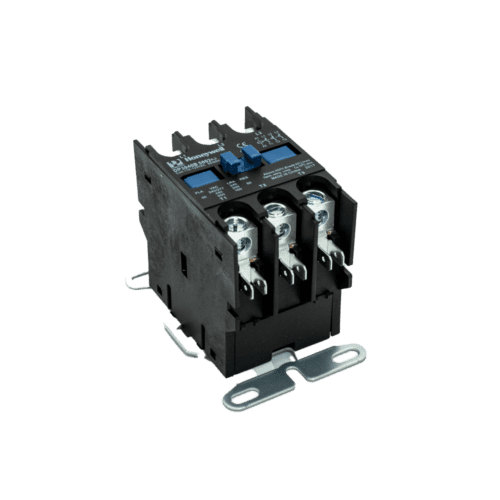

Honeywell/Resideo DP3040B5002 – 120 Vac 3 Pole PowerPro Definite Purpose Contactor w/ Lug Connectors
Specifications:
- Dimensions (in.): 3.1 in. high x 3.62 in. wide x 2.4 in. deep
- Dimensions (mm): 79 mm high x 92 mm wide x 61 mm deep
- Frequency: 50 Hz; 60 Hz
- Electrical Connections: lug connectors
- Temperature Ratings (C): -20 C to +65 C
- Temperature Ratings (F): -4 F to +149 F
- Switching: DPST
- Contact Ratings (AFL): 40 A @ 240/277 Vac, 480 Vac, 600 Vac
- Contact Ratings (resistive): 50 A @ 240/277 Vac, 480 Vac, 600 Vac
- Poles: 3
- Contact Connections (coil): 1/4 in. quick-connects and #6 screws
- Coil Ratings Voltage: 120 Vac
