Description

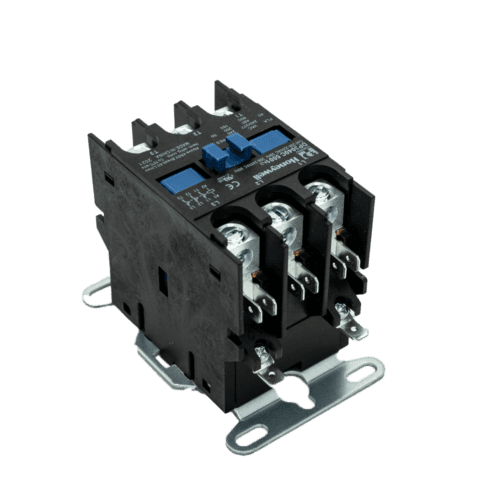

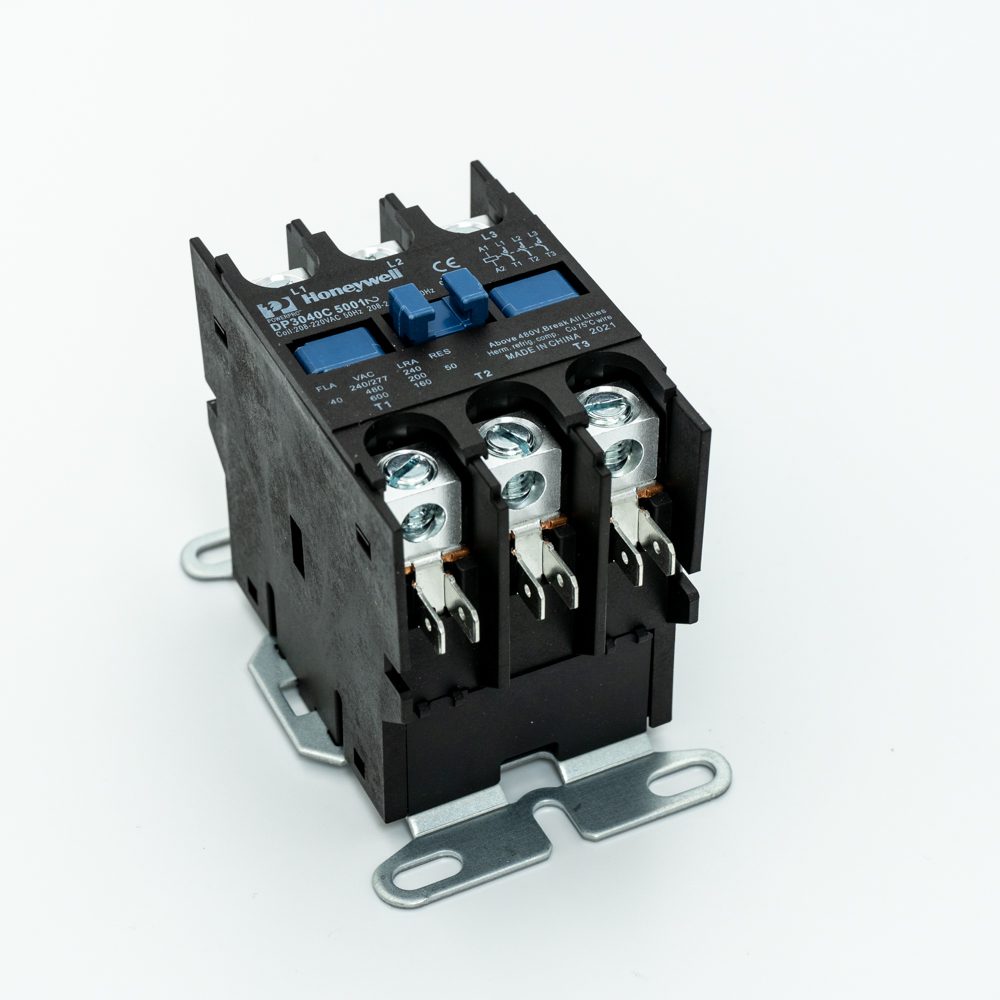

These Honeywell/Resideo three pole definite purpose electromagnetically operated contactors provide switching for starting of induction motors.
Features
- Shrouded coils on 3 pole (25A to 60A) models protect the coil from harsh environment factors.
- Moisture proof epoxy is used to encapsulate the 3 pole 75A through 120A coils.
- Multiple mounting holes and slots for convenient, interchangeable mounting with most competitive devices.
- Traditional design meets many needs.
- Full array of replacement coils, contact sets and accessories available.
- Contact Ratings (AFL): 40 A @ 240/277 Vac, 480 Vac, 600 Vac
- Contact Ratings (resistive): 50 A @ 240/277 Vac, 480 Vac, 600 Vac
- Poles: 3
- Contact Connections (coil): 1/4 in. quick-connects and #6 screws
- Coil Ratings Voltage: 208 Vac/240 Vac
