Description

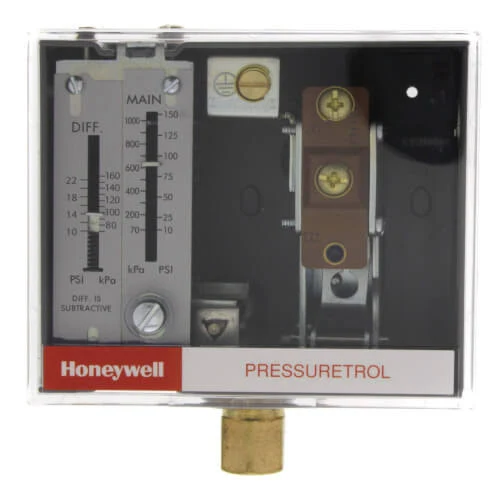

The Honeywell L404F1383 Pressuretrol Controller is engineered for precise pressure monitoring and control in industrial applications. Designed to handle pressures ranging from 10 to 150 psi, this controller ensures reliable operation in systems utilizing steam, air, non-combustible gases, or non-corrosive fluids.
Features:
- Use with steam, air, noncombustible gases, or fluids non-corrosive to pressure sensing element.
- Models have snap-acting switching to open or close a circuit on pressure rise.
- Have adjustable differentials.
- Adjustments are made by screws on top of case.
- Mount using 1/4 inch -18 NPT internal pipe threads or surface mount through base of case.
Specifications:
- Application: Provide control of steam, air, non-combustible gases or non-corrosive fluids
- Operating Range: 1 to 8 psi
- Mounting:1/4 in. NPT internal thread or surface mount through back of case
- Switch Operation: Auto recycle
- Switching Action: SPDT snap action, make R-W, break R-B on pressure rise
- Sensor Element: Stainless Steel diaphragm
- Pipe Connections, Main or High Pressure:1/4″ NPT internal thread
- Switch Contact Ratings (120v):8.0 AFL, 48.0 ALR, 10.0 A resistive
- Switch Contact Ratings (240v): 5.1 AFL, 30.6 ALR, 5.0 A resistive
- Maximum Sustained Operating Pressure: 25 psi
- Pressure Differential (psi): 2 to 6 psi
- Differential Type: Subtractive
- Temperature Range: -35 to 150 F
- Electrical Connections: Screw terminals
