Description

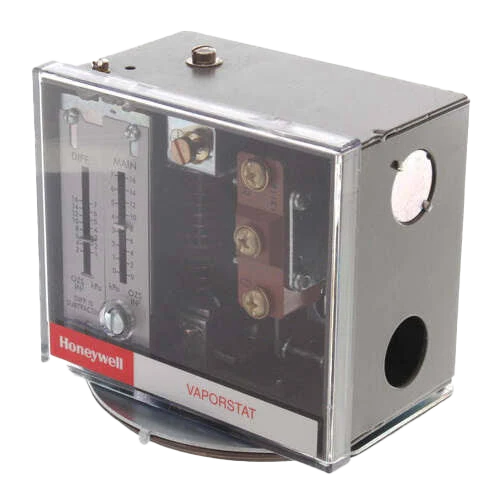

Achieve safer, more energy-efficient control in low-pressure steam systems with the Honeywell L408J1009 Vaporstat Controller. This precision pressure switch offers reliable cut-in and auto-recycling protection for steam heating and vapor systems.
Features:
- Stainless steel diaphragm for use with liquids, air, noncombustible gases, ammonia, oxygen, distilled water and similar media.
- Provide SPDT switching.
- Clear plastic cover allows observation of the pressure settings.
- Mount using hexagonal fitting with 1/4 in. NPT internal threads for direct mounting to the 14026 (steel) or 50024585-001 (brass) Steam Trap (siphon loop).
- Ground Screw terminal.
- Approvals, Underwriters Laboratories Inc, Listed: File No. MP466, Guide No. MBPR
- Approvals, Canadian Standards Association, Certified: File No. LR1620, Guide No. 400-E-O
Specifications:
- Application: Heating
- Switch Action: SPDT
- Height: 5-1/8″
- Width (Inches): 4-1/2″
- Depth (Inches): 4-1/2″
- Electric Connection: Screw Terminals
