Description

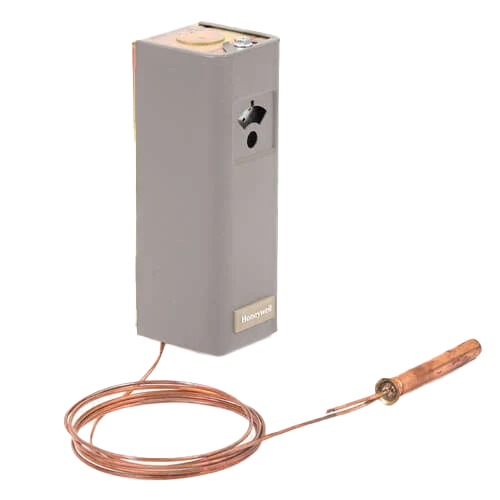

Ensure precise and reliable temperature control in hydronic systems with the Honeywell/Resideo L6008A1242—a dual-function aquastat that serves both as a low‑limit controller and circulator relay. Featuring a broad operating range of 100–200 °F and a user-adjustable differential interval of 5–30 °F, this aquastat delivers flexible and efficient operation in heating applications.
Specifications:
- Application: Low Limit, Circulator Control
- Switch Action: SPDT
- Temperature Range (F): 100°F to 200°F
- Electrical Rating: 8A @ 120 Vac, 0.25 A @ 0.25 to 12 Vdc, 5.1A @ 240 Vac
- Electrical Ratings (ALR): 30.6A @ 240 Vac, 48A @ 120 Vac
- Differential: 5° to 30°F, Adjustable
- Min Temp Differential: 5°F
- Max Temp Differential: 30°F
- Height: 5-5/8″
- Width: 2″
- Depth (Inches): 2-1/8″
- Max Ambient Temp (°F): 150°F
- Well Included: No
- Mount: Horizontal, Vertical
