Description

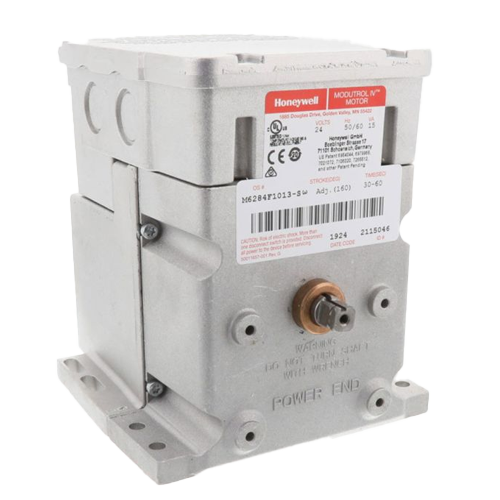

Upgrade your damper or valve control systems with the reliable Honeywell Modutrol IV Motor, Model M6284F1013‑S. Designed for precision and durability, this 24‑VAC, non‑spring‑return actuator is ideal for HVAC applications requiring high torque, smooth control, and dependable operation.
Features:
- Integral junction box provides NEMA 3 weather protection if motor is mounted in the upright position.
- Motor and circuitry operate from 24 Vac.
- Quick-connect terminals are standard–screw terminal adapter is available.
- Adapter bracket for matching shaft height of older motors is available.
- Motors have field adjustable stroke (90 to 160 degrees).
- Integral auxiliary switches are available factory mounted, or can be field added.
- All models have dual shafts (slotted and tapped on both ends).
- All models have auxiliary switch cams.
- Fixed torque throughout the entire voltage range.
- Motors are designed for either normally open or normally closed valves and dampers.
- Include electrically isolated feedback potentiometer that provides shaft position indication.
- -S models with non-linear feedback are for slaving applications only.
