Description

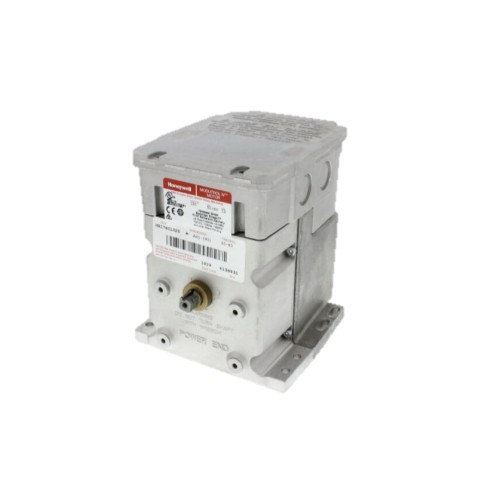

Upgrade your zone control system with the Honeywell M9174C1025 actuator—a powerful and reliable foot-mounted motor engineered for proportional control of dampers and valves. This Series 90 Modutrol IV device delivers consistent 75 lb‑in torque and includes two internal auxiliary switches for precise automation.
Features:
- Integral junction box provides NEMA 3 weather protection if motor is mounted in the upright position.
- Motor and circuitry operate from 24 Vac.
- Quick-connect terminals are standard–screw terminal adapter is available.
- Adapter bracket for matching shaft height of older motors is available.
- Motors have field adjustable stroke (90 to 160 degrees).
- Integral auxiliary switches are available factory mounted, or can be field added.
- All models have dual shafts (slotted and tapped on both ends).
- All models have auxiliary switch cams.
- Fixed torque throughout the entire voltage range.
Specifications:
- Fail Safe Mode: Non-Spring Return
- Control Signal: Proportional
- Torque: 75 lb-in
- Internal Aux Switch: 2
- Voltage: 120v
- Mount: Foot
- Temperature Range: -40° to 150°F
- Timing: 30-60 Seconds
