Description

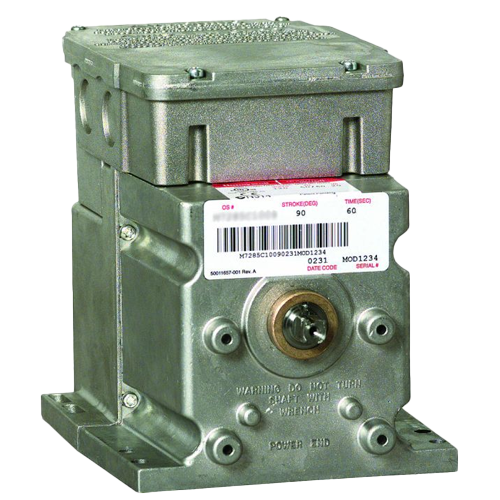

The Honeywell M9182A1011 Modutrol IV motor is a durable Series 90, spring‑return modulating actuator, designed to deliver precise proportional control for dampers and valves. Engineered for HVAC systems that demand both accuracy and reliability, this actuator is ideal for commercial-grade heating, ventilation, and burner control applications.
Features:
- Integral Junction Box Provides NEMA 3 Weather Protection If Motor Is Mounted In The Upright Position
- Integral Spring Return Returns Motor To Normal Position In the Event Of Power Failure
- Motor And Circuitry Operate From 24 VAC
- Quick-Connect Terminals Are Standard–Screw Terminal Adapter Is Available
- Adapter Bracket For Matching Shaft Height Of Older Motors Is Available
- Motors Have Field Adjustable Stroke (90 To 160 Degrees)
- Integral Auxiliary Switches Are Available Factory Mounted, Or Can Be Field Added
- All Models Have Dual Shafts (Slotted And Tapped On Both Ends)
- All Models Have Auxiliary Switch Cams
- Fixed Torque Throughout The Entire Voltage Range
