Description

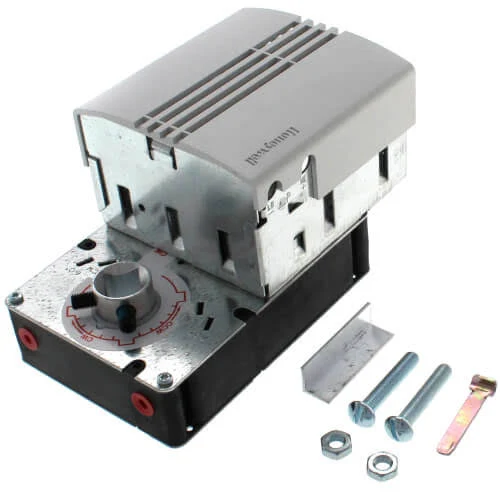

The Honeywell ML6161D2006 is a durable, non-spring-return damper actuator designed for precise HVAC control in VAV terminal units, dampers, and valve applications. Operating smoothly within approximately 90 seconds, this 24 VAC actuator delivers 35 lb‑in (4 Nm) of torque and functions with floating or SPDT controls—perfect for maintaining efficient airflow and climate control in commercial settings.
Features:
- Control for air damper applications with up to10 sq.ft. assuming 3.5 in-lb per sq.ft. of damper area, velocity independent.
- Superior A/C synchronous submotor for consistent timing and actuator longevity.
- Eliminate need for limit switches or mechanical stops by providing magnetic coupling.
- All models include manual declutch lever, and bag assembly with two minimum position setscrews.
- Mount directly on 3/8 inch or 1/2 inch square or round damper shaft.
- Selectable 45, 60, and 90 stroke in either clockwise or counterclockwise direction.
