Description

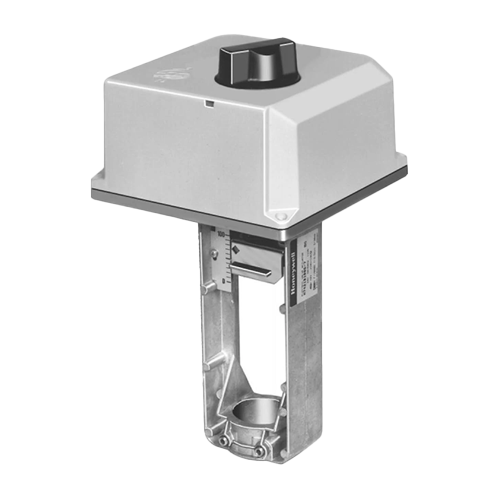

The Honeywell ML7421A1032 Linear Stroke Valve Actuator is engineered for precise control in HVAC systems, offering a robust 405 lb-in torque to efficiently operate globe valves. This actuator is ideal for applications involving chilled water, hot water, or steam, ensuring optimal performance in various environmental conditions.
Features:
- Easy and quick installation on valves with 1 3/8″ bonnet and 3/4″ stroke, or with 1 7/8″ bonnet and 1 1/2″ stroke.
- High force for VGF Pressure-balanced valves.
- No separate linkage required.
- Conduit connector standard.
- No adjustments required on linkage.
- Accurate valve positioning.
- Low power consumption.
- High close-off ratings.
- Force limiting end switches.
- Manual operator.
- Synchronous motor.
- Maintenance free.
Specifications:
- Direct-Coupled, Linear-Stoke, Valve Actuator
- Actuator Type: Valve
- Application Type: HVAC
- Control Signal: 2 to 10 Vdc
- Number of Internal Auxiliary Switches: 0
- Mounting: Directly on V5011/V5013 Globe Valves and VGF Flanged Globe Valves
- Frequency: 60 Hz, 50 Hz
- Manual Operation: Knob
- Timing, Nominal Driving @ 60 Hz (sec): 95 Seconds
- Temperature Range, Ambient (F):14 to 122F
