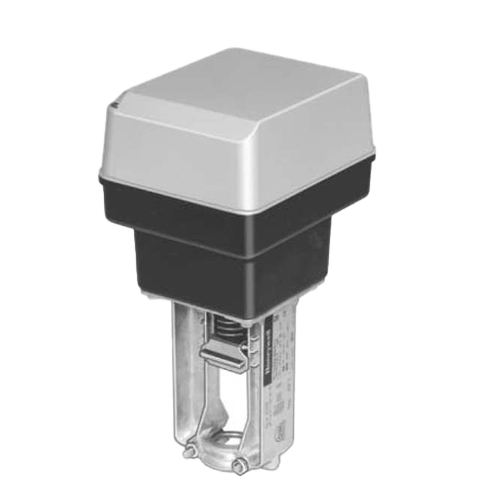

Upgrade your hydronic or steam systems with this high-capacity 24 VAC linear-stroke actuator, designed for reliable and precise control of globe valves. Engineered by Honeywell, the ML7425B3012 brings robustness, accuracy, and safety—especially in mission-critical HVAC applications.
Specifications:
- Actuator Type: Valve
- Application Type: HVAC
- Control Signal: 0 to 10 Vdc, 2 to 10 Vdc
- Number of Internal Auxiliary Switches: 0
- Mounting: Directly on V5011/V5013 Globe Valves and VGF Flanged Globe Valves (3/4″ or 20mm stroke)
- Frequency: 60 Hz, 50 Hz
- Manual Operation: Manual override winding
- Timing, Nominal Driving @ 60 Hz (sec): 90 Seconds
- Temperature Range, Ambient (F):14 to 122F
