Description

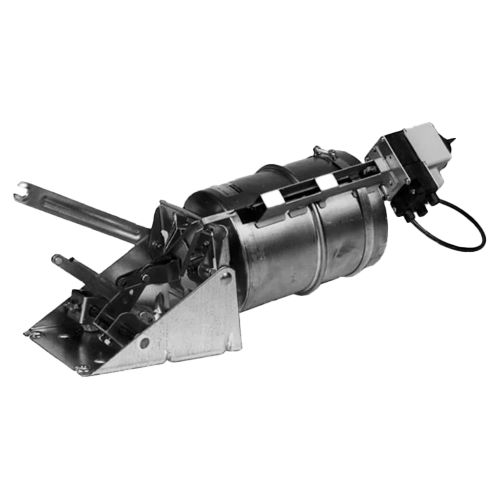

Ensure smooth, accurate, and reliable airflow control in HVAC systems with the Honeywell MP918A1024 — a top-tier high-force pneumatic damper actuator featuring a positive positioner and spring-return mechanism. Designed for medium to large dampers, it’s ideal for variable air volume (VAV) unit applications.
Specifications:
- Air Connections: 1/8" NPT, 5/32" push-on barb (Pilot), 1/4" push-on barb (main.)
- Product Type: Actuator
- Actuator Type: Pneumatic
- Temperature Range (F): -20°F to 158°F
- Actuator Spring Range: 10 psi
- Fail Safe Mode: Spring Return
- Stroke: 3-1/2"
- Max Pressure (PSI): 25
- Features: External trunnion mounting bracket
