Description

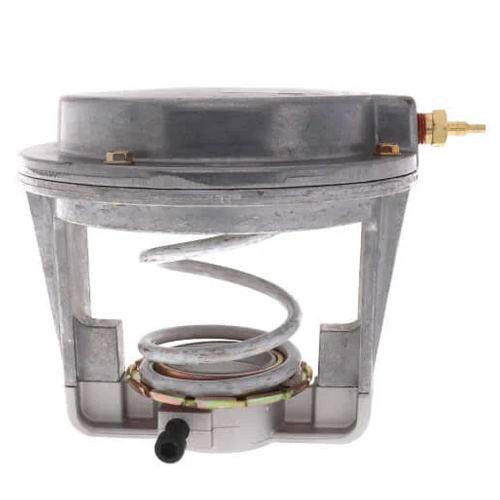

The Honeywell MP953C1026 is a reliable spring-return pneumatic valve actuator perfect for providing proportional control of steam, hot, or cold water in HVAC systems. Designed for use with V5011, V5013, and VGF valve bodies, this actuator features a 4–11 psi spring range and a durable rolling diaphragm for long service life and stable performance.
Specifications:
- Diameter (Inches): 5″
- Max Pressure (PSI): 25
- Temperature Range (F): 0°F – 140°F
- Action: Direct Acting
- Actuator Spring Range: 4 to 11 psi
- Fail Safe Mode: Spring Return
- Motor: Spring Return
