Description

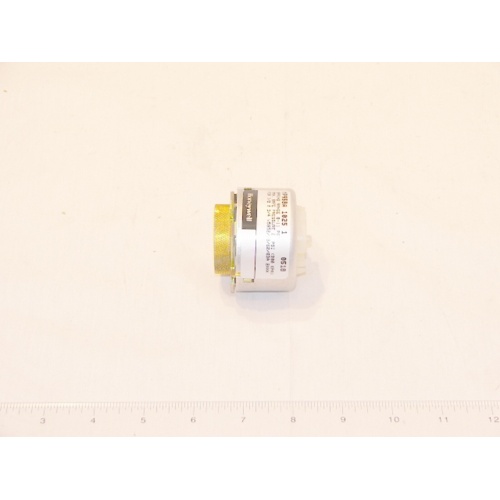

The Honeywell MP958A1025 is a direct-acting pneumatic valve actuator engineered for reliable, precise control in commercial HVAC systems. Designed with a low actuator force profile and spring return functionality, this actuator delivers consistent performance in demanding building automation environments.
Key Features
- 8–11 PSI spring range for accurate, responsive valve positioning
- Direct acting operation for straightforward control integration
- Low actuator force design reduces wear and extends service life
- Spring return mechanism ensures fail-safe valve positioning on loss of air pressure
- Barbed fitting sized for 1/4″ OD plastic tubing for easy pneumatic connections
- 30 PSI maximum operating pressure rating
Compatible Valves
The MP958A1025 is designed for use with the following Honeywell valve series:
- V5852A2xxx
- V5862A2xxx
- V5853A2xxx
- V5863A2xxx (V586 series)
Applications
Ideal for commercial HVAC hydronic systems, air handling units, and building automation applications where pneumatic control of two-way or three-way valves is required. The spring return feature provides added safety and reliability in critical control loops.
Specifications
- Brand: Honeywell
- Part Number: MP958A1025
- Spring Range: 8–11 PSI
- Action: Direct Acting
- Return Type: Spring Return
- Actuator Force: Low
- Tubing Connection: Barbed fitting for 1/4″ OD plastic tubing
- Maximum Operating Pressure: 30 PSI
